FOUNDATION
·
STEP D2 · 02 OF 8
02
Lift the four columns
Lift the four columns onto the anchor studs — two installers per column.

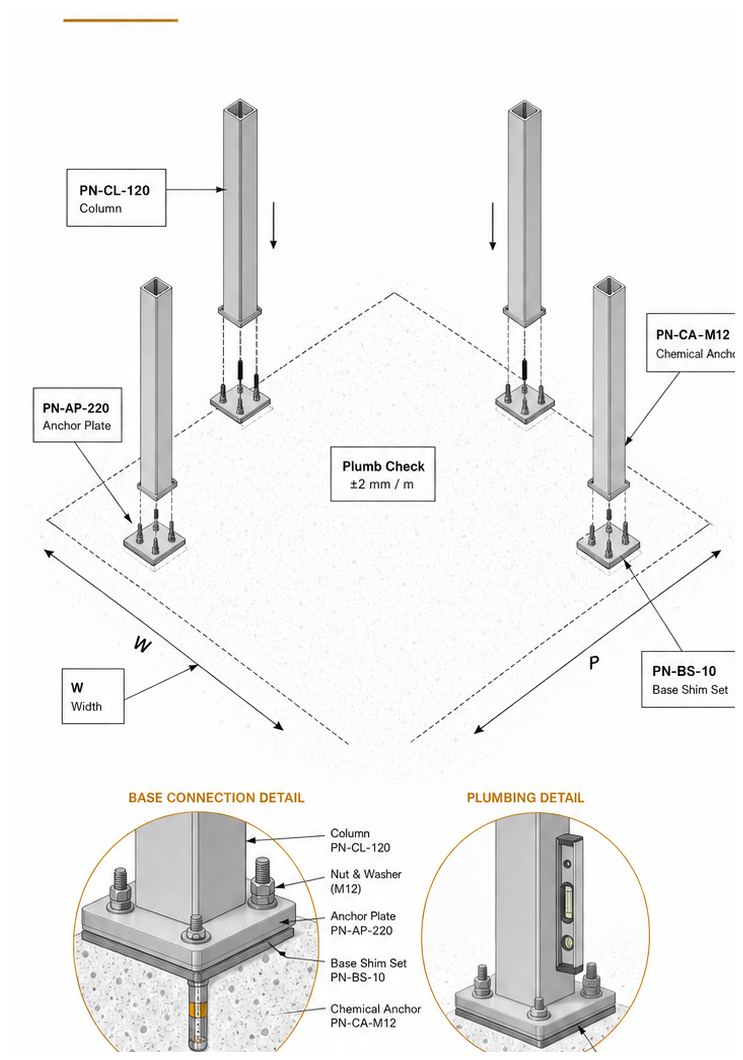

Fig. 02 — Lift the four columns
- 1Lift each column and lower it onto the corresponding anchor plate.
- 2Align the base holes with the M12 studs.
- 3Insert washers and nuts loosely at all four corners.
- 4Check column plumb in both directions.
- 5Add shims where required and tighten progressively.
- 6Confirm all columns are aligned before continuing.
- Column profile: PN-CL-120
- Section: 120 x 120 mm
- Fastener: M12 washer + nut set
- Plumb tolerance: ±2 mm / m
- Applicable to: 4 columns
Use temporary braces or a second installer to hold the column plumb while the nuts are engaged.
Do not fully torque base nuts until the beam frame is assembled.
Soft sling, spirit level, torque wrench, shim plates
25 min
