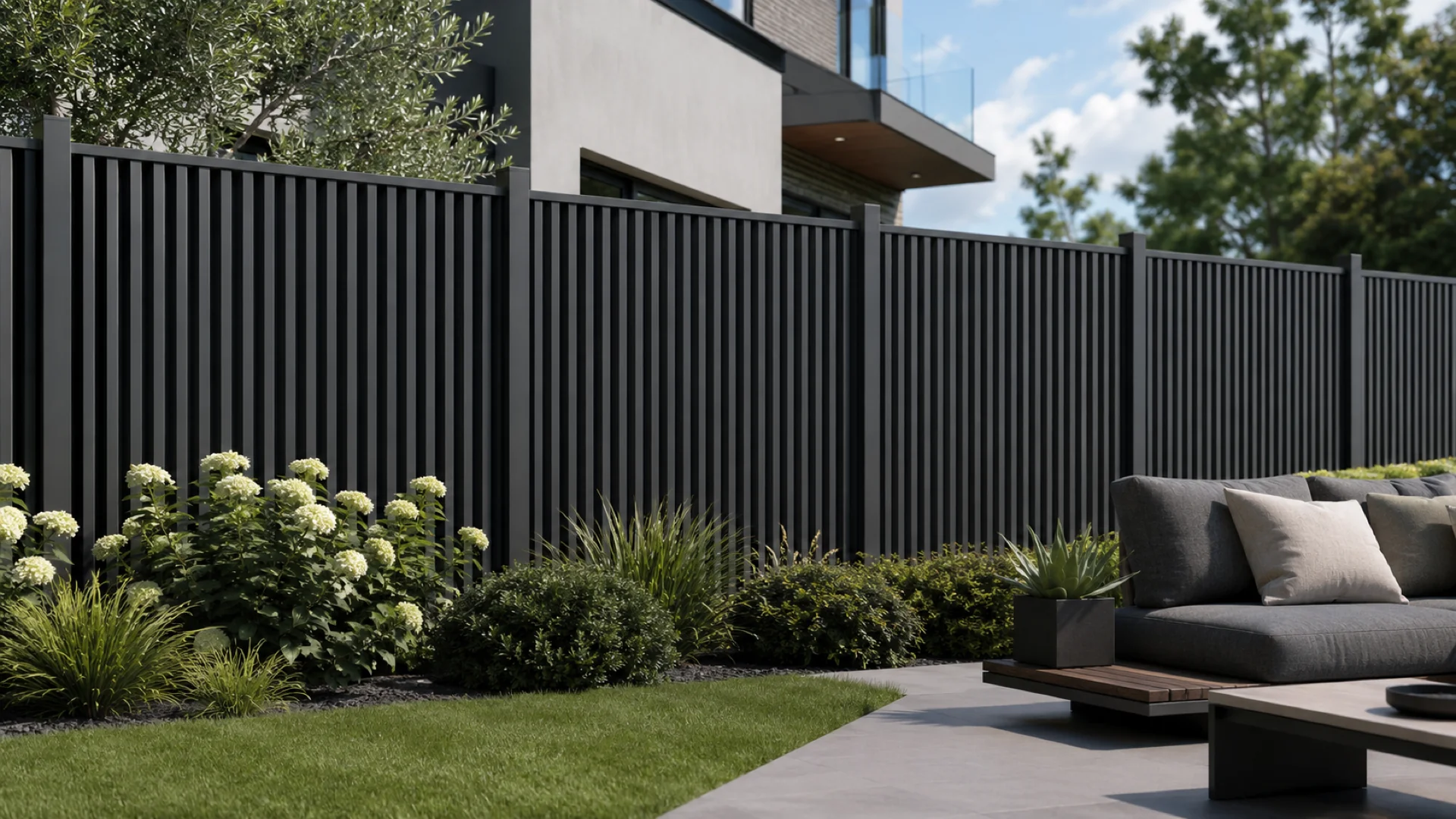

VisioMod Verto — Vertical Aluminium Slat Fence

Name: PONARC GmbH
Address: DE

Vertical aluminium slat fence — Lineo's twin rotated 90°.

CODE VF-VRTVISIOMOD BY PONARC

VisioMod Verto — Vertical Aluminium Slat Fence

Huvudfunktioner

4 vertical slat widths: 30 / 50 / 80 / 140 mm
Same RAL + woodgrain palette as Lineo
Identical view both sides — no visible fasteners
Heights 900 / 1200 / 1500 / 1800 / 2000 mm
Concealed top + bottom rails

Tekniska specifikationer

Slat width	30 / 50 / 80 / 140 mm
Slat thickness	20 mm hollow extrusion
Slat orientation	Vertical (perpendicular to grade)
Frame profile	40 × 40 mm aluminium 6063-T5 — top + bottom rail
Standard heights	900 / 1200 / 1500 / 1800 / 2000 mm
Maximum span	2500 mm between posts
Posts	60×60 / 90×90 mm aluminium — bolt-down or concrete-set
Surface finish	Qualicoat Class 2 powder coat — any RAL
Wind resistance (standard)	1.0 kN/m² — Zone 1–2 inland
Wind resistance (coastal)	1.4 kN/m² — Zone 3–4 coastal upgrade
Reference standard	Wind action design per EN 1991-1-4 + National Annex

Standarder & certifieringar

DIN 18065 · Stairs and railings (residential)
EN 1991-1-1 · Densities, self-weight, imposed loads
EN 1991-1-4 · Wind actions
TRAV · Impact-resistant glazing (where applicable)
EN 1090-3 · Execution of aluminium structures
EN 12150 · Tempered safety glass
EN AW-6063-T5 · Aluminium alloy / temper
ISO 9001 · Manufacturer quality management

Garanti

10 år på aluminiumram · 5 år på TIGER pulverlackering · 5 år på motor (där monterad). Villkor: installation inom 12 månader efter leverans, följ installationsmanualen, observera angivna vind-/snölaster.

Beställning & support

PONARC Group · Försäljning: info@luxashade.com · Konstruktörer / arkitekter: support@ponarc.com · Tillgängligt i DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
