FRAME
·
STEP D7 · 07 OF 26
07

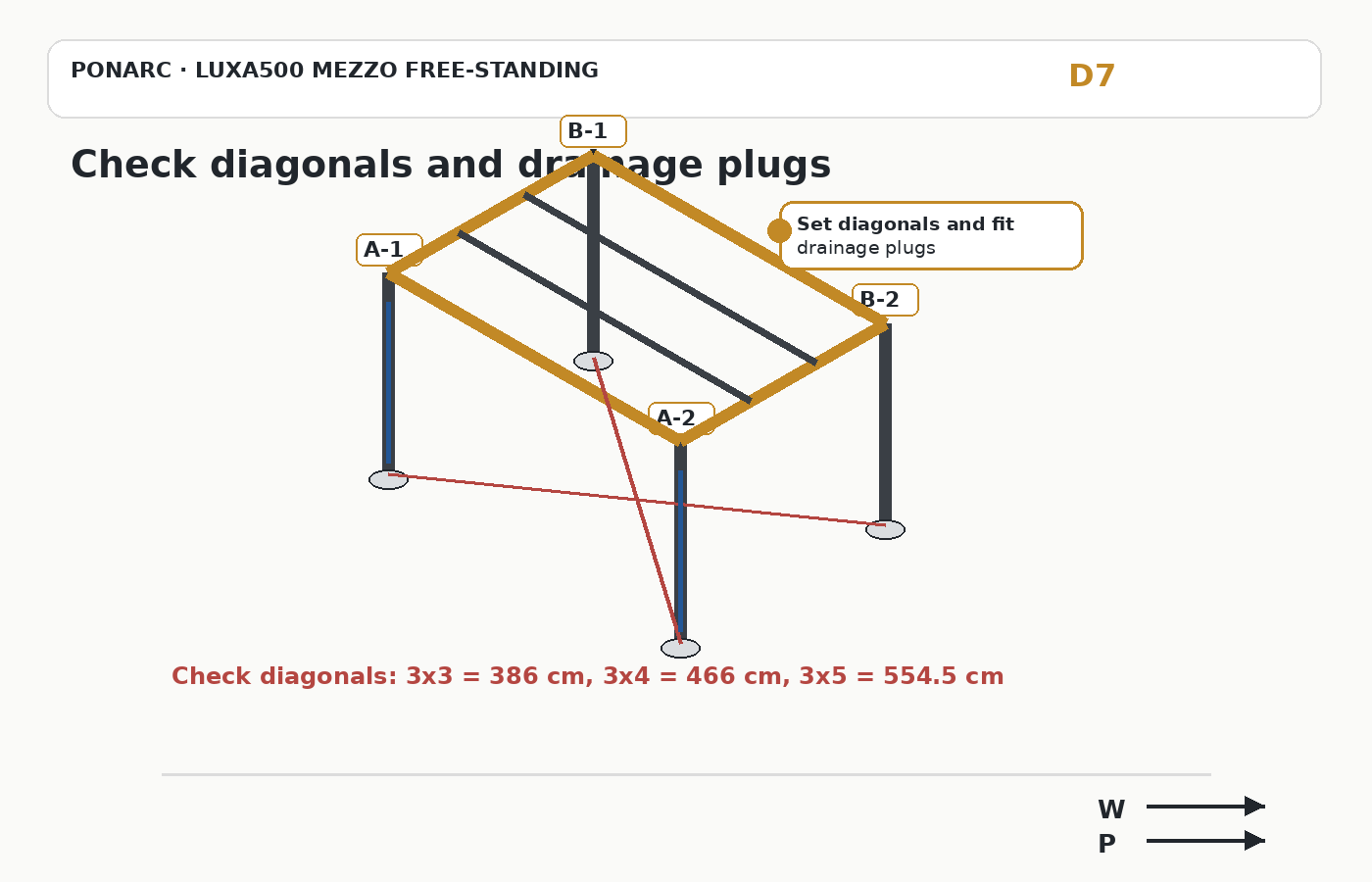

Check diagonals and drainage plugs
Verify diagonals match the size table (3×3: 386 · 3×4: 466 · 3×5: 554.5 · 4×4: 527.5 · 4×5: 602.4 · 4×6: 683.7 cm) and seat drainage plugs.
SPECIFICATIONS
TIP
WATCH OUT
TOOLS
TIME
15 min
About step 7 of the Luxa Aperio 500 installation
Check diagonals and drainage plugs · FRAME · 26 step · Luxa Aperio 500 (free-standing motorised pergola)
Verify diagonals match the size table (3×3: 386 · 3×4: 466 · 3×5: 554.5 · 4×4: 527.5 · 4×5: 602.4 · 4×6: 683.7 cm) and seat drainage plugs.
