Assemble the long-side ladder frames on the ground

Two long-side ladders ready — the frame begins to take shape.

Assemble the long-side ladder frames on the ground — illustration

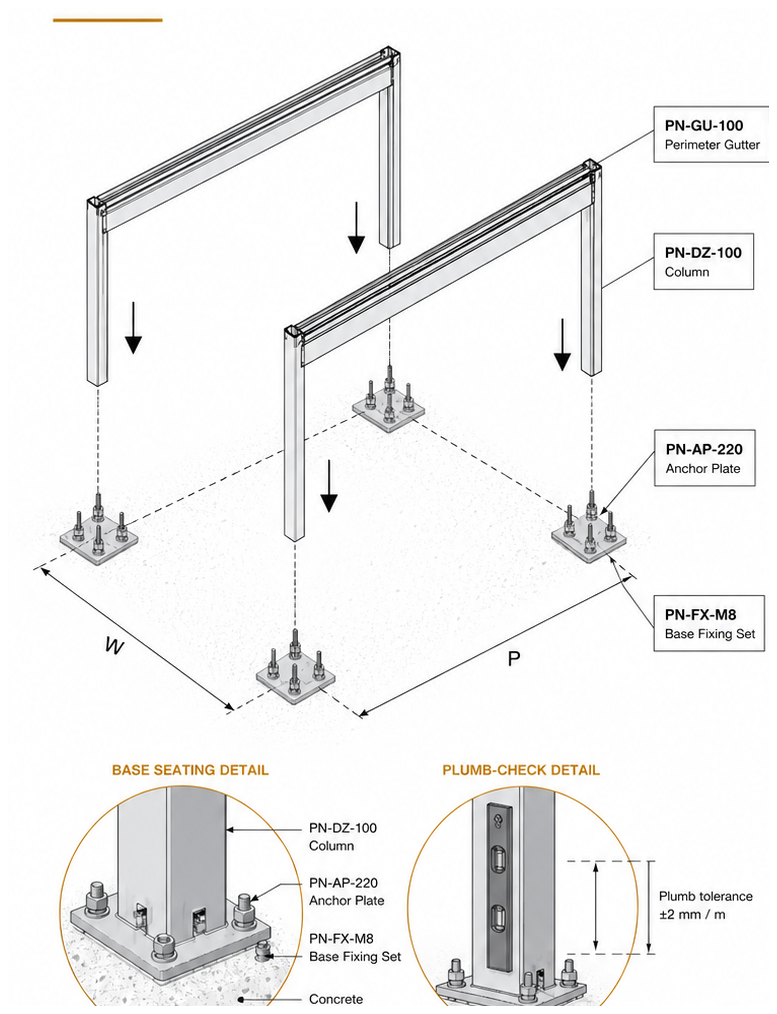

Fig. 05 — Assemble the long-side ladder frames on the ground

SUB-STEPS

  1. 1Lift the two long gutters into position on the columns.
  2. 2Apply neutral silicone to column-to-gutter faces.
  3. 3Align gutter ends with column heads.
  4. 4Insert fixing sets and secure finger-tight.
  5. 5Verify both sides are parallel and level.
  6. 6Confirm W and P dimensions before proceeding.

SPECIFICATIONS

  • Column: PN-DZ-100
  • Gutter: PN-GU-100
  • Reinforcement: PN-EU-100
  • Edge trim: PN-EU-101
  • Long sides: B-1 and B-2

TIP

Ensure gutter feed/outlet faces inside the system.

WATCH OUT

Do not fully tighten one side before the opposite side is aligned.

TOOLS

Silicone gun, hex keys, tape measure, square

TIME

25 min

About step 5 of the Luxa Riparo Pura Carport installation

Assemble the long-side ladder frames on the ground · FRAME · 10 step · Luxa Riparo Pura Carport (free-standing aluminium carport)

Two long-side ladders ready — the frame begins to take shape.
