MOUNT · STEP D8 · 08 OF 10
08

Close the front short side

First short-side closure — geometry still adjustable here.

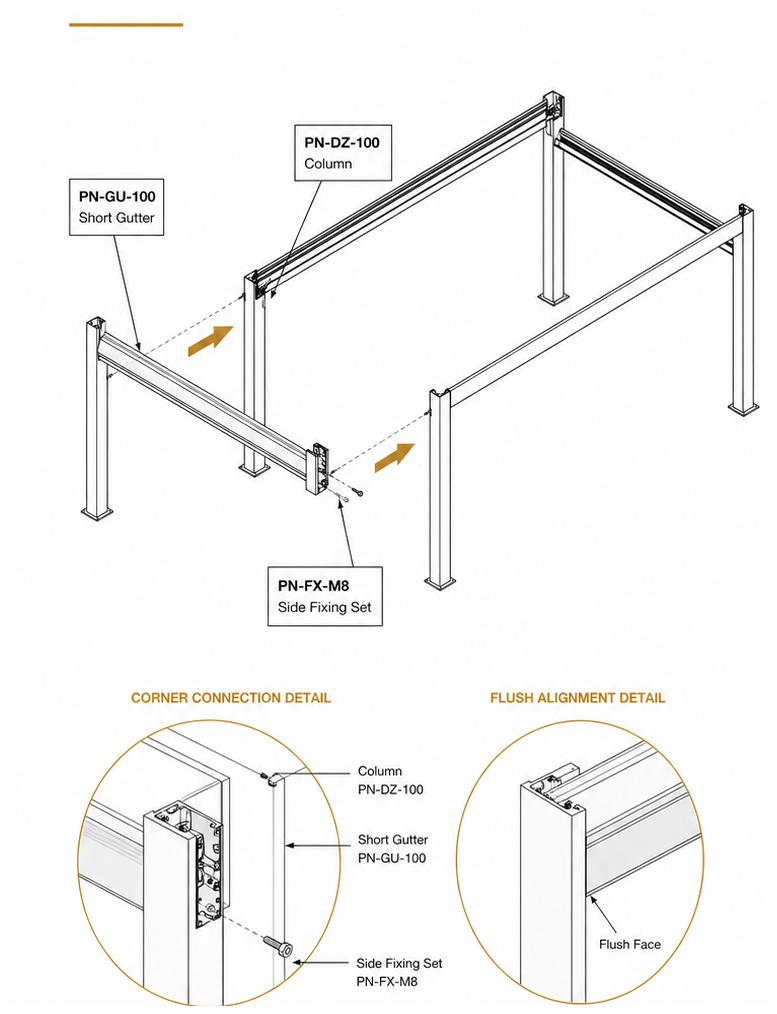

Close the front short side — illustration
Fig. 08 — Close the front short side

SUB-STEPS

  1. 1Position the short gutter between two columns on the left side.
  2. 2Align both end interfaces with column heads.
  3. 3Insert side fixing set into pre-drilled holes.
  4. 4Check the gutter face is flush with both columns.
  5. 5Verify frame squareness.
  6. 6Tighten lightly for final alignment.

SPECIFICATIONS

  • Short gutter: PN-GU-100
  • Reinforcement: PN-EU-100
  • Edge trim: PN-EU-101
  • Side fasteners: M8
  • Side member: C-1

TIP

Clamp the profile temporarily before installing the second fixing point.

WATCH OUT

If not fully seated, the opposite side will not align.

TOOLS

Clamp, hex keys, square, tape measure

TIME

12 min

About step 8 of the Luxa Riparo Pura Carport installation

Close the front short side · MOUNT · 10 step · Luxa Riparo Pura Carport (free-standing aluminium carport)

First short-side closure — geometry still adjustable here.
