PRODUCT DATASHEET

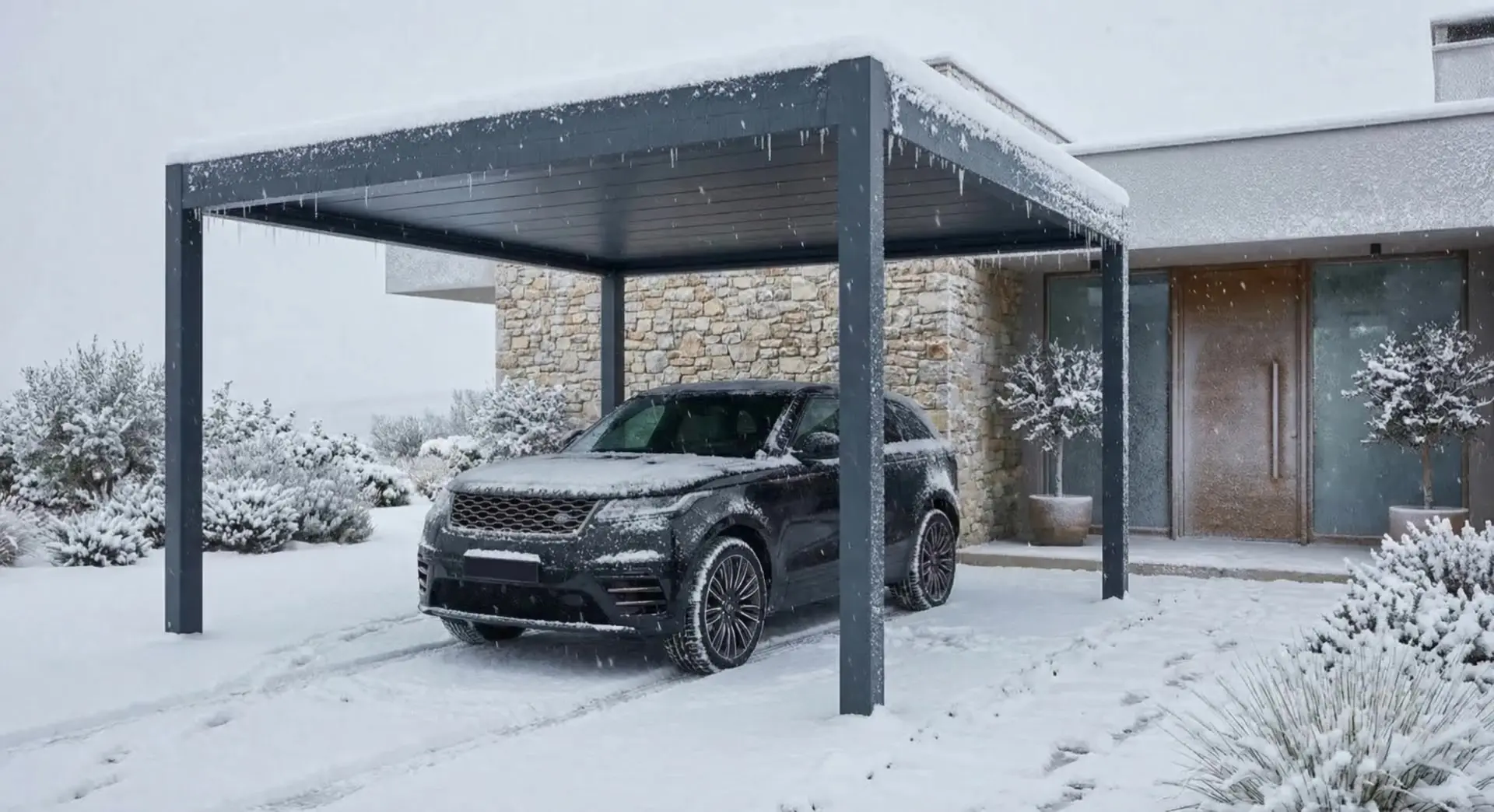

Luxa Riparo Pura Carport
PRODUCT DATASHEET
Luxa Riparo Pura Carport
Freestanding or wall-mounted aluminium carport with integrated concealed guttering.
Key features
- Aluminium construction
- Snow-load review route
- Integrated guttering
- Wall-mounted or freestanding
- Any RAL colour
Technical specifications
| Material | 6063-T5 extruded aluminium |
| Column Profile | 120 × 120 mm or 150 × 150 mm |
| Roof Type | Flat or 3% slope polycarbonate / glass |
| Max Width | 6000 mm (single) / 12000 mm (double) |
| Max Depth | 5500 mm |
| Snow review | Project snow route per EN 1991-1-3 |
| Wind review | Project wind route per EN 1991-1-4 |
| Guttering | Integrated concealed drainage |
| Surface Finish | Any RAL colour (TIGER Coatings) |
Standards & certifications
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-3 · Snow loads
- EN 1991-1-4 · Wind actions
- EN 1090-3 · Execution of aluminium structures
- EN 12020-2 · Aluminium extrusion tolerances
- Qualicoat Class 2 · TIGER Coatings powder coat
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
