PRODUCT DATASHEET

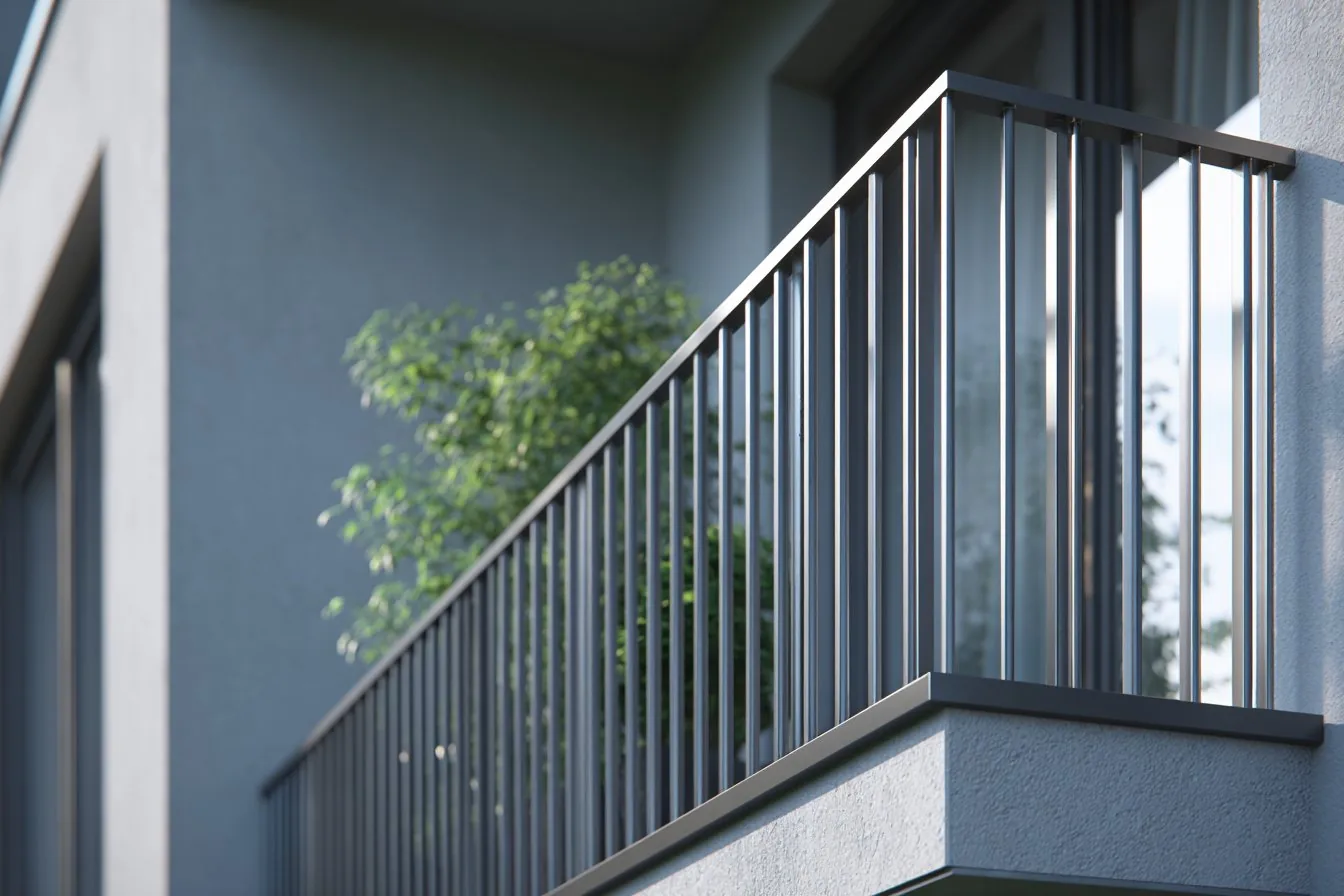

Visio AR-Q Modular Railing
PRODUCT DATASHEET
Visio AR-Q Modular Railing
EasyMod MARS (Modular Aluminium Railing System) — one frame, any infill: round bars, glass, perforated panels or horizontal slats.
Key features
- One frame, any infill
- 5 bar profiles: Ø16 / 14×14 / 20×20 / 30×15 / 50×15mm
- Factory pre-assembled
- Any RAL colour
- 3D adjustable wall brackets
Technical specifications
| Frame | 50 × 30 mm aluminium (6063-T5) |
| Posts | 60 × 60 mm aluminium |
| Infill bars | Ø16mm round · 14×14mm sq · 20×20mm sq · 30×15mm flat · 50×15mm flat |
| Heights | 900 / 1000 / 1100 mm |
| Max Field Length | 2500 mm |
| Mounting | 3D adjustable wall brackets |
| Surface Finish | Any RAL colour (TIGER Coatings) |
| Standard | EN 1991-1-1 residential |
Standards & certifications
- DIN 18065 · Stairs and railings (residential)
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-4 · Wind actions
- TRAV · Impact-resistant glazing (where applicable)
- EN 1090-3 · Execution of aluminium structures
- EN 12150 · Tempered safety glass
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
