PRODUCT DATASHEET

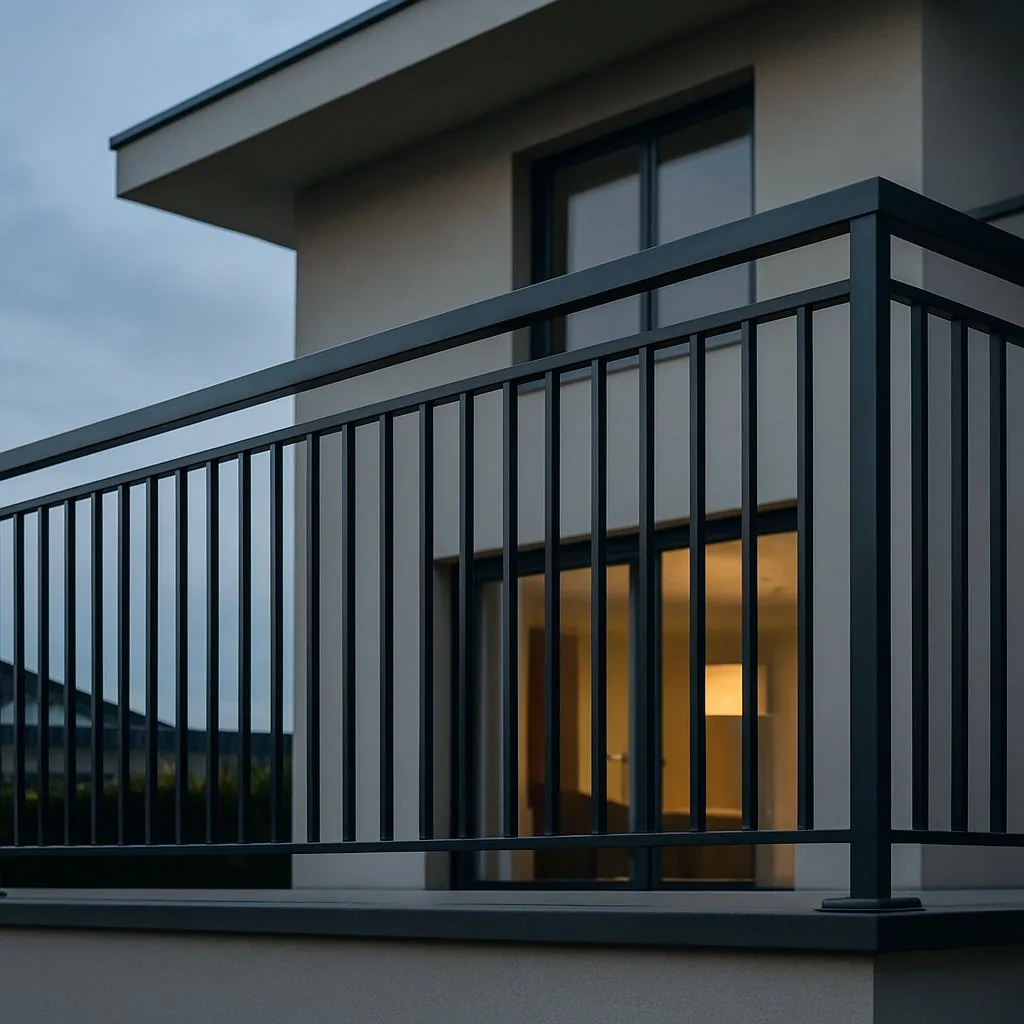

Visio AR-P Post Railing
PRODUCT DATASHEET
Visio AR-P Post Railing
EasyMod MARS-P — Post-mounted free-standing railing system.
Key features
- P = Post: floor-anchored freestanding system
- 5 bar profiles: Ø16 / 14×14 / 20×20 / 30×15 / 50×15mm
- Top-mount (slab bolt) or side-mount anchors
- Universal MARS frame — same profiles as MARS-H
- Any RAL colour, QUALICOAT Class II
- EN 1991-1-1 residential & commercial
Technical specifications
| System | P = Post — floor-anchored freestanding posts |
| Post Section | 60×60mm sq. or Ø60mm rd. (EN AW-6063 T6) |
| Bar Profiles | Ø16mm round · 14×14mm sq · 20×20mm sq · 30×15mm flat · 50×15mm flat |
| Bar Spacing | 100–120 mm (EN 1991-1-1 compliant) |
| Heights | 900 / 1000 / 1100 / 1200 mm |
| Top Rail | 60×30mm aluminium |
| Mounting | Top-mount (slab bolt M10 A4) or side-mount (slab edge) |
| Surface Finish | Any RAL colour, TIGER Drylac QUALICOAT Class II |
| Load | 1.0 kN/m residential; 1.5 kN/m reinforced |
| Standard | EN 1991-1-1 / DIN 18065 |
Standards & certifications
- DIN 18065 · Stairs and railings (residential)
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-4 · Wind actions
- TRAV · Impact-resistant glazing (where applicable)
- EN 1090-3 · Execution of aluminium structures
- EN 12150 · Tempered safety glass
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
