PRODUCT DATASHEET

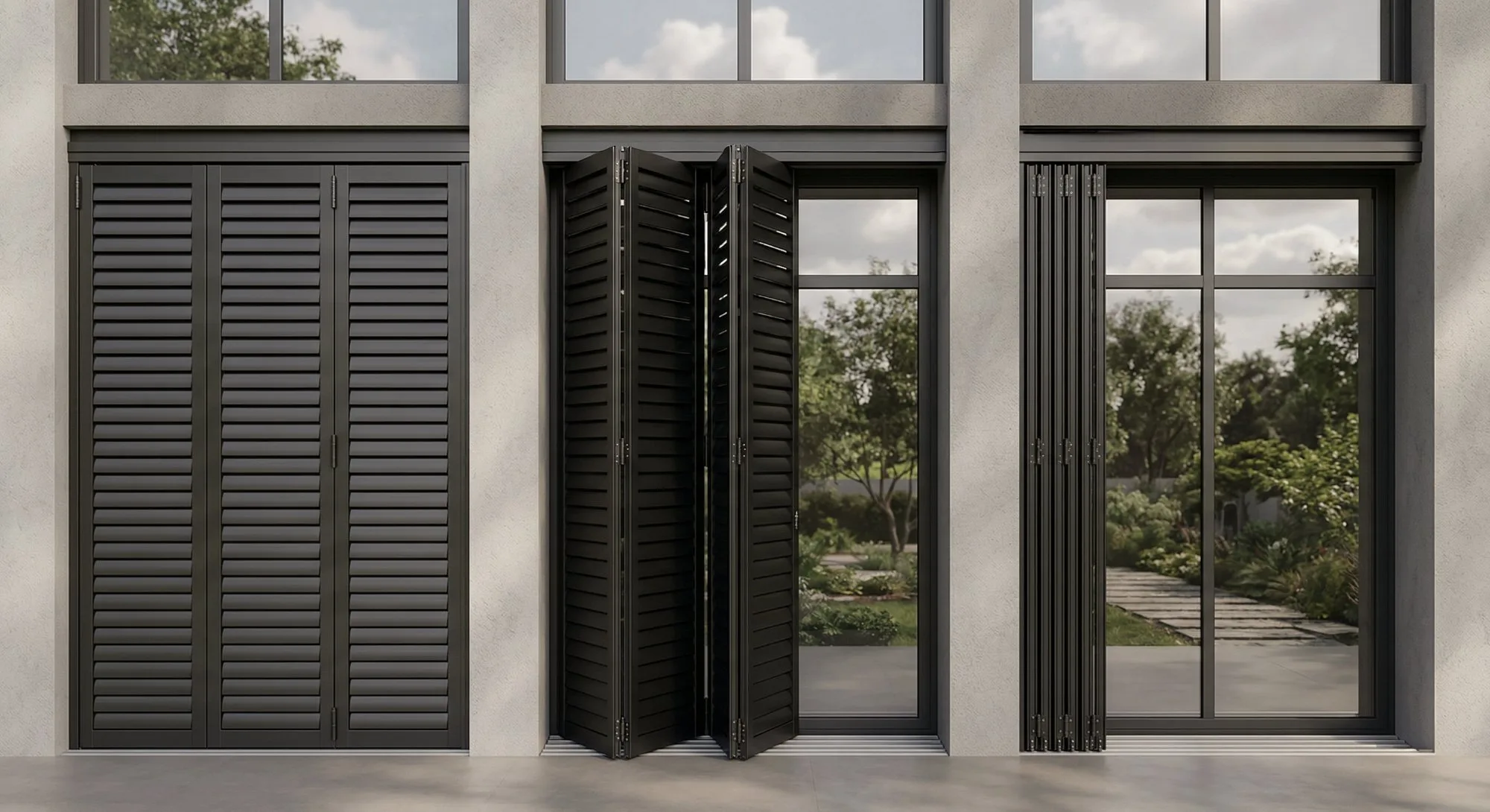

Luxa BS Shutter Folding System
PRODUCT DATASHEET
Luxa BS Shutter Folding System
Folding aluminium louvre shutters that stack compactly when fully open.
Key features
- Folding mechanism
- Compact stacking
- Manual or motorized
- Multiple finishes
Technical specifications
| Panel Width | 400–800 mm |
| Max Panel Height | 3000 mm |
| Blade Profile | 80 × 15 mm aluminium |
| Folded Depth | 120 mm per pair |
| Operation | Manual or motorised (24V) |
| Stacking | Pairs fold flat against each other |
| Surface Finish | Any RAL colour (TIGER Coatings) |
| Standard | EN 13659 (solar protection devices) |
Standards & certifications
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-3 · Snow loads
- EN 1991-1-4 · Wind actions
- EN 1090-3 · Execution of aluminium structures
- EN 12020-2 · Aluminium extrusion tolerances
- Qualicoat Class 2 · TIGER Coatings powder coat
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
