PRODUCT DATASHEET

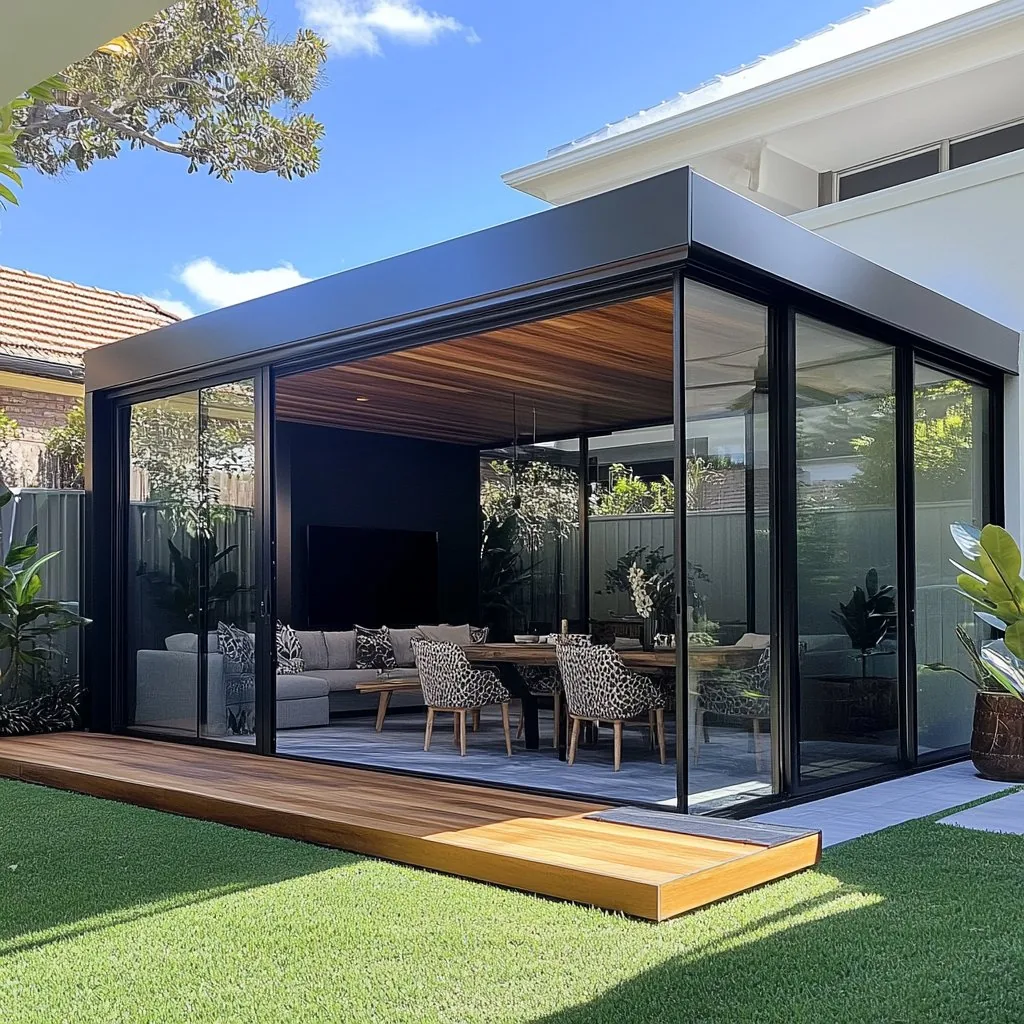

Visio Soglia Fold Glass Systems
Bi-fold glass door system — accordion-fold for full opening up to 8 metres wide.
Key features
- Bi-fold mechanism
- Full opening
- Thermal break option
- 2–8 panels
- Max 8000mm
Technical specifications
| Panels | 2–8 per opening |
| Frame Sightline | 45 mm aluminium |
| Max Opening | 8000 mm |
| Glass | 8mm ESG or 24mm IGU (thermal break) |
| Thermal Break | Optional polyamide bridge |
| Folding | Inward or outward |
| Hardware | Concealed hinges + top track |
| Surface Finish | Any RAL colour (TIGER Coatings) |
Standards & certifications
- DIN 18065 · Stairs and railings (residential)
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-4 · Wind actions
- TRAV · Impact-resistant glazing (where applicable)
- EN 1090-3 · Execution of aluminium structures
- EN 12150 · Tempered safety glass
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
