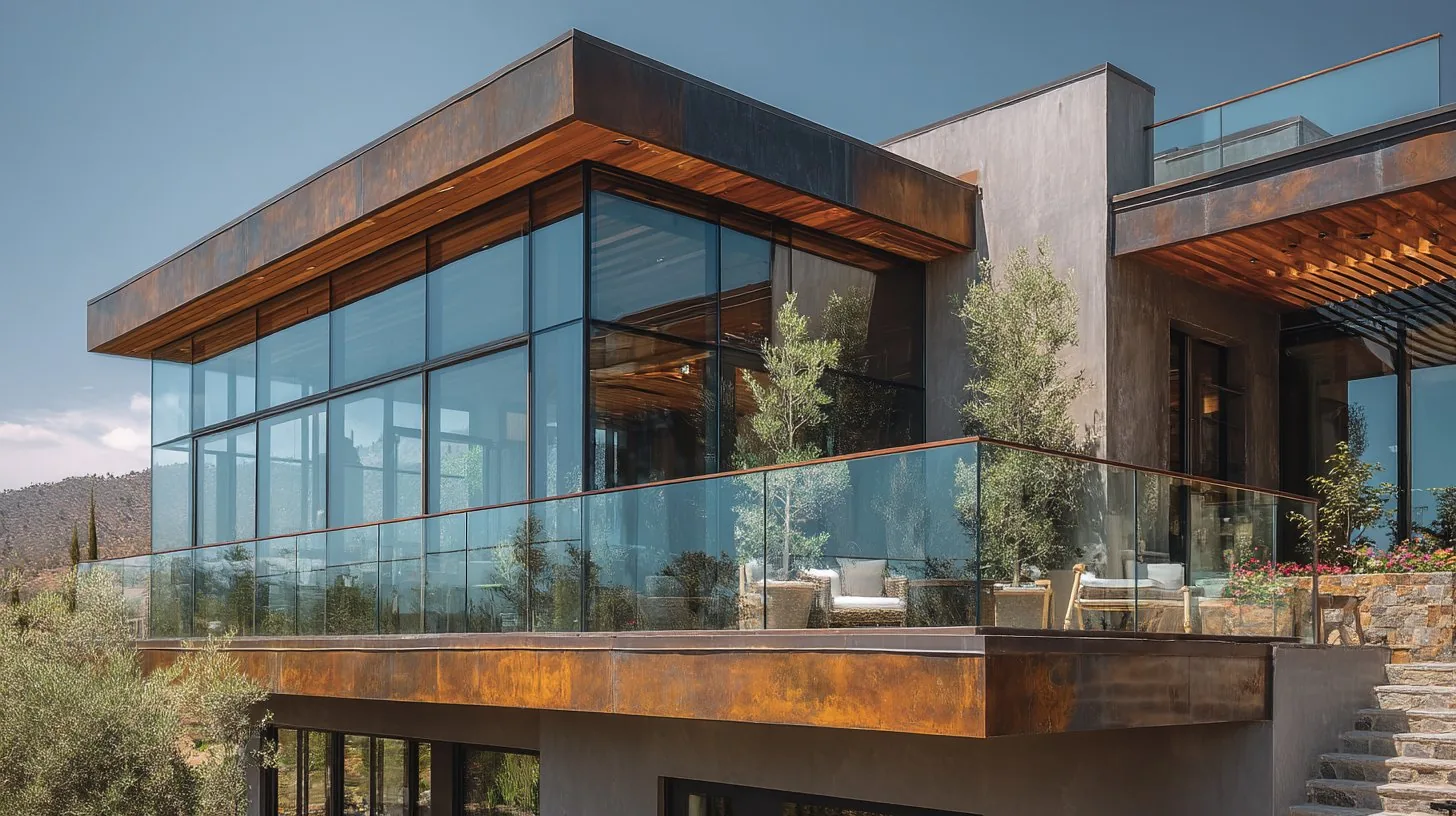

Visio FS 1500 Frameless Glass System
PRODUCT DATASHEET
Visio FS 1500 Frameless Glass System
Frameless glass balustrade with slim 100mm aluminium base shoe.
Key features
- Frameless design
- 100mm slim base shoe
- Dry-glaze wedge clamping
- VSG laminated safety glass (13.52mm)
- Top or side mount
- Full RAL cladding covers
- A4 stainless steel anchors
- No silicone required
- EN 12150 documentation route
- Heights: 1000/1100mm
Technical specifications
| Base Shoe Profile | 100 × 70 mm aluminium (6063-T5) |
| Glass | 6+6, 8+8 or 10+10 mm laminated (VSG) |
| Glass Heights | 1000 / 1100 mm |
| Mounting | Top-mount or side-mount |
| Anchors | A4 stainless steel, 300mm centres |
| Wind review | Project wind route by glass build-up and exposure |
| Cladding | Brushed SS, polished SS, or any RAL colour |
| Panel Gap | 10–20mm with silicone joints |
| Documentation route | EN 12150 and EN ISO 12543 documentation by project |
Standards & certifications
- DIN 18065 · Stairs and railings (residential)
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-4 · Wind actions
- TRAV · Impact-resistant glazing (where applicable)
- EN 1090-3 · Execution of aluminium structures
- EN 12150 · Tempered safety glass
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
