PRODUCT DATASHEET

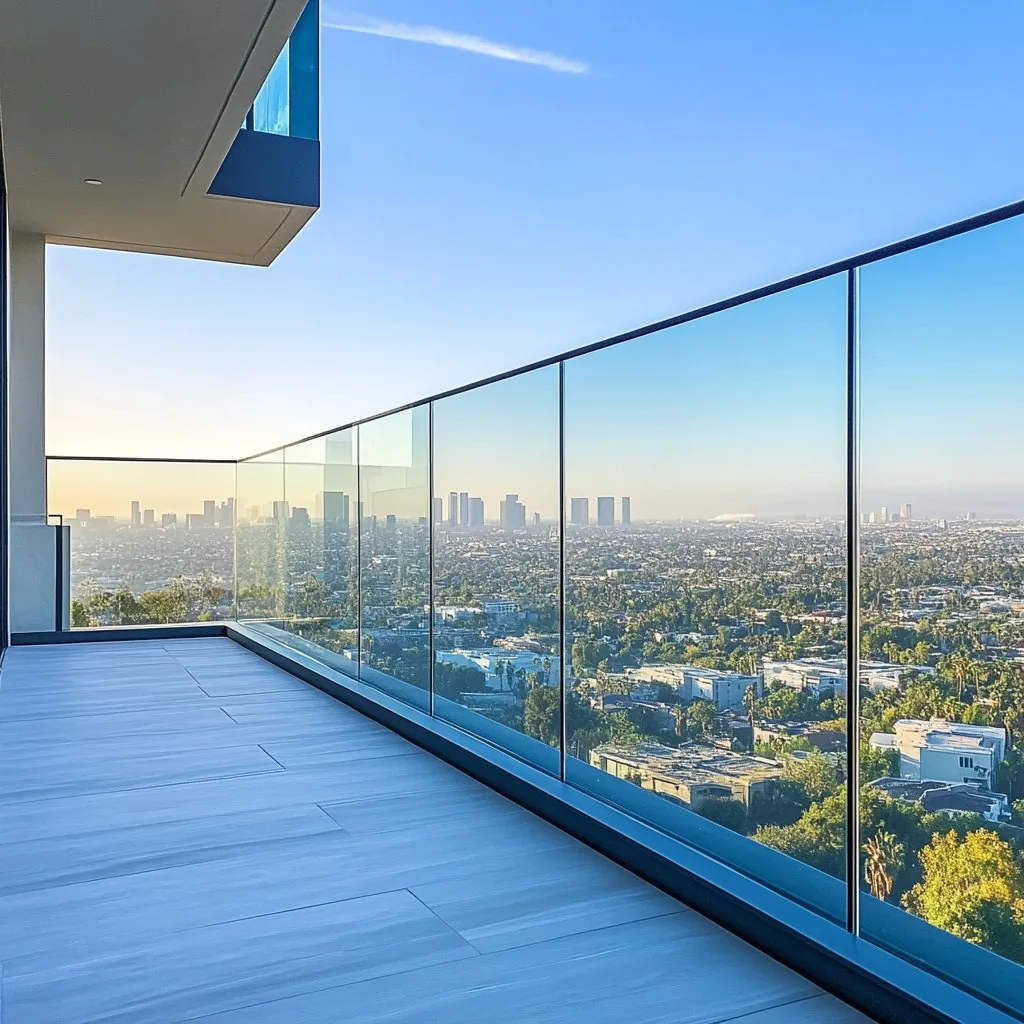

Visio FS 3000 Frameless Glass System
PRODUCT DATASHEET
Visio FS 3000 Frameless Glass System
Commercial-route frameless glass barrier with 140mm heavy-duty base shoe and laminated glass selected after project load review.
Key features
- Commercial grade
- 140mm heavy-duty base shoe
- 17.52mm laminated glass
- Commercial line-load route
- Adjustable wedge retention
- M12 A4 stainless anchors
- Optional LED channel
- Round or flat cap rail
- Wind-load documentation route
- Public access compliant
Technical specifications
| Base Shoe Profile | 140 × 90 mm aluminium (6063-T5) |
| Glass | 8+8, 10+10 or 12+12 mm laminated (VSG) |
| Glass Heights | Project-specific, normally up to 1200 mm |
| Mounting | Top-mount with M12 bolts |
| Anchors | M12 A4 stainless steel, 250mm centres |
| Wind review | Project wind route by glass build-up and exposure |
| Cap Rail | Round Ø42mm or flat 60×20mm (optional) |
| LED Integration | Full-length channel available |
| Documentation route | EN 12150 and EN ISO 12543 documentation by project |
Standards & certifications
- DIN 18065 · Stairs and railings (residential)
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-4 · Wind actions
- TRAV · Impact-resistant glazing (where applicable)
- EN 1090-3 · Execution of aluminium structures
- EN 12150 · Tempered safety glass
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
