PRODUCT DATASHEET

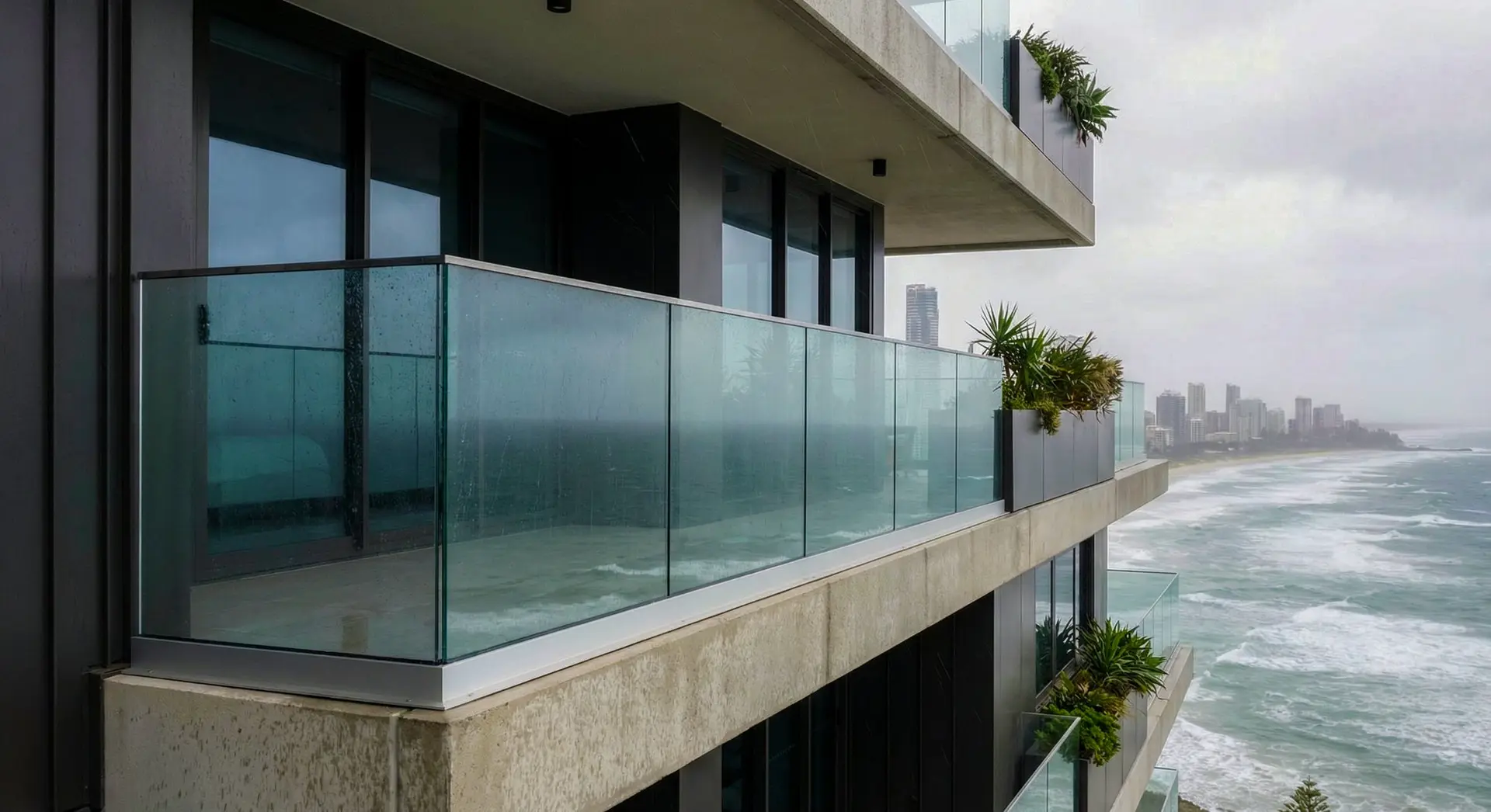

Visio FS 7000 Frameless Glass System
PRODUCT DATASHEET
Visio FS 7000 Frameless Glass System
Heavy-duty frameless glass railing with reinforced aluminium base channel for public and commercial projects that need documented load review and laminated safety glass.
Key features
- Reinforced aluminium base channel
- Public-load documentation route
- Heaviest FS profile — public & commercial
- 21.52mm laminated safety glass (2×10mm ESG + PVB)
- Top/side/concealed mounting options
- Full RAL powder coating
- EN 1991-1-1 documentation route
- EN 12150 toughened glass
- Structural warranty terms by project
- Premium commercial & public buildings
Technical specifications
| Profile | Reinforced aluminium base channel, heavy-duty extrusion |
| Glass | 10+10, 12+12 or 15+15 mm laminated (VSG) |
| Glass Heights | 1000 / 1100 mm |
| Mounting | Top-mount, side-mount, or concealed base |
| Wind review | Project wind route by glass build-up and exposure |
| Finishes | Full RAL powder coating, anodised options |
| Handrail | Optional stainless steel or aluminium |
| Substrates | Concrete, steel, timber |
Standards & certifications
- DIN 18065 · Stairs and railings (residential)
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-4 · Wind actions
- TRAV · Impact-resistant glazing (where applicable)
- EN 1090-3 · Execution of aluminium structures
- EN 12150 · Tempered safety glass
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
