PRODUCT DATASHEET

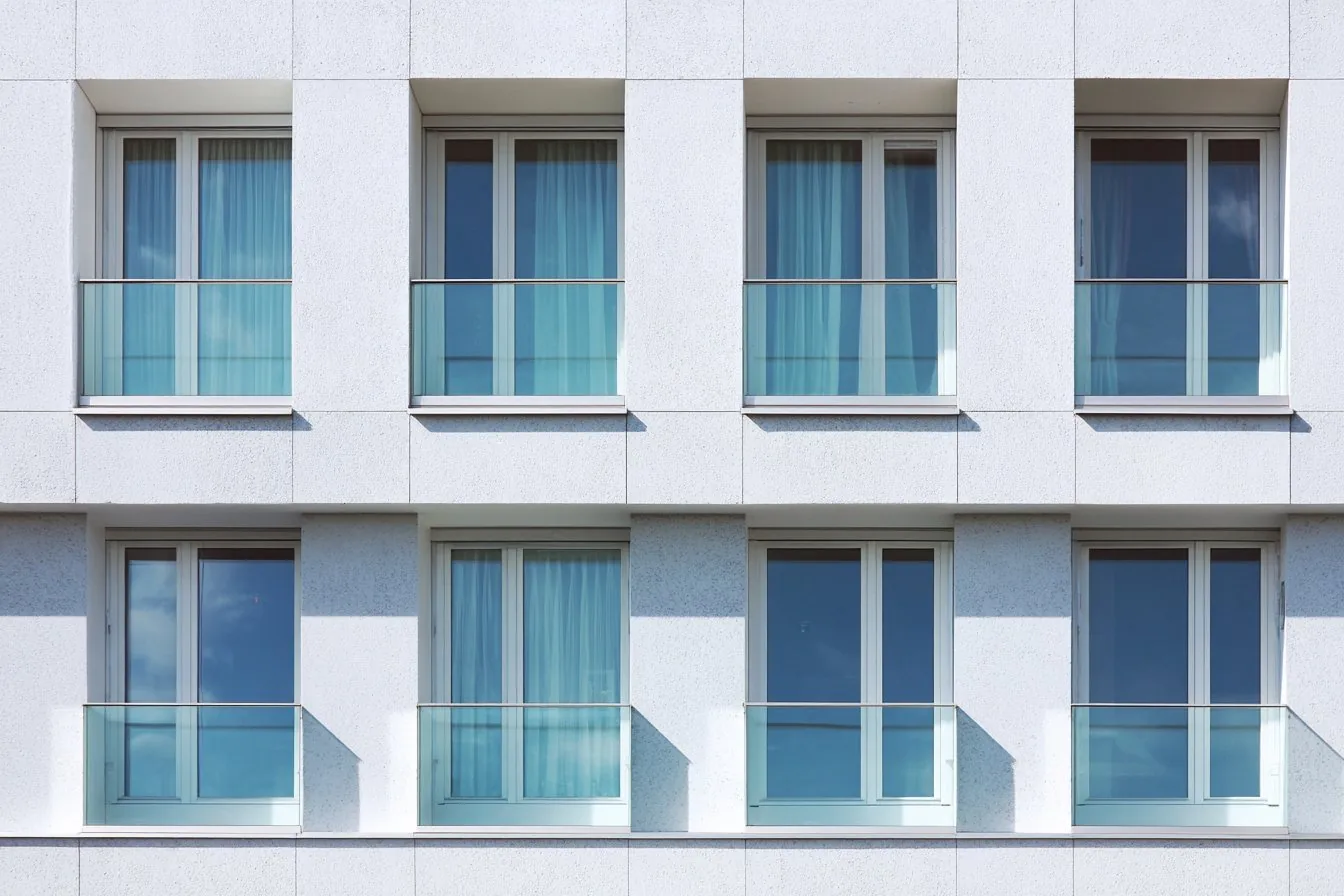

Visio Air Giulietta Balcony Railing
French balcony railing with 35mm projection.
Key features
- 35mm minimal projection
- WDVS/ETICS compatible
- Concealed hardware
- VSG laminated glass
- Any RAL colour
Technical specifications
| Projection | 35–45 mm |
| Frame Profile | 25 mm aluminium |
| Glass | 2×6mm ESG + 0.76mm PVB (13.52mm) |
| Heights | 900 / 1100 mm |
| Max Width | 2400 mm (single panel) |
| Mounting | Side-fix into reveal or ETICS |
| Surface Finish | Any RAL colour (TIGER Coatings) |
| Standard | EN 1991-1-1 residential |
Standards & certifications
- DIN 18065 · Stairs and railings (residential)
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-4 · Wind actions
- TRAV · Impact-resistant glazing (where applicable)
- EN 1090-3 · Execution of aluminium structures
- EN 12150 · Tempered safety glass
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
