PRODUCT DATASHEET
VisioMod Lineo — Horizontal Aluminium Fence
PRODUCT DATASHEET

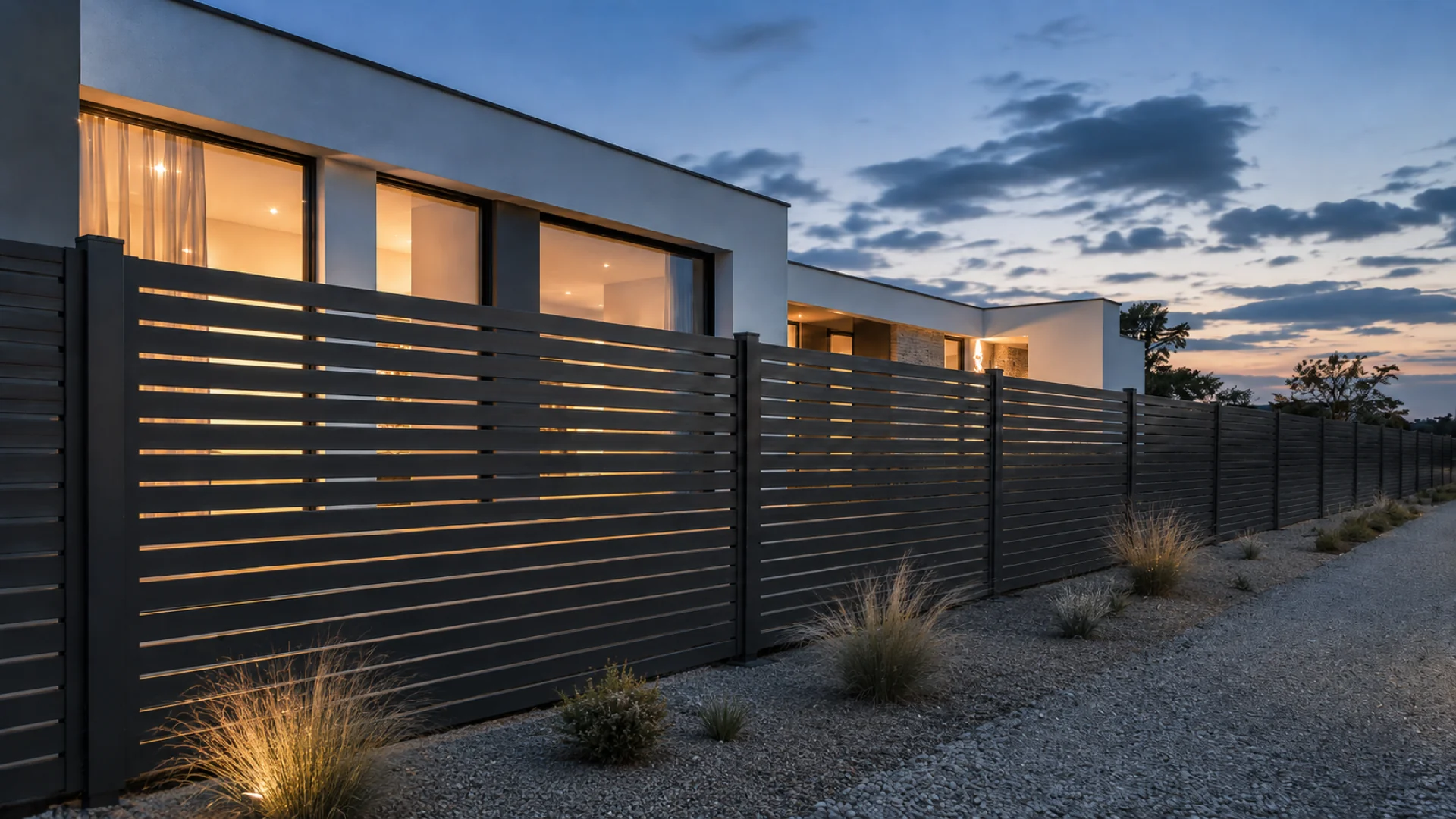

VisioMod Lineo — Horizontal Aluminium Fence
Horizontal aluminium slat fence in 30, 50 or 80 mm widths.
Key features
- 3 slat widths: 30 / 50 / 80 mm
- Identical view both sides — no visible fasteners
- Open or closed slat packing
- Heights 900 / 1200 / 1500 / 1800 / 2000 mm
- Any RAL + woodgrain laminate
Technical specifications
| Slat width | 30 / 50 / 80 mm |
| Slat thickness | 20 mm hollow extrusion |
| Frame profile | 40 × 40 mm aluminium 6063-T5 |
| Standard heights | 900 / 1200 / 1500 / 1800 / 2000 mm |
| Maximum span | 2500 mm between posts |
| Posts | 60×60 / 80×80 mm aluminium — bolt-down or concrete-set |
| Surface finish | Qualicoat Class 2 powder coat — any RAL |
| Wind resistance (standard) | 1.0 kN/m² — Zone 1–2 inland |
| Wind resistance (coastal) | 1.4 kN/m² — Zone 3–4 coastal upgrade |
| Reference standard | Wind action design per EN 1991-1-4 + National Annex |
Standards & certifications
- DIN 18065 · Stairs and railings (residential)
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-4 · Wind actions
- TRAV · Impact-resistant glazing (where applicable)
- EN 1090-3 · Execution of aluminium structures
- EN 12150 · Tempered safety glass
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
