PRODUCT DATASHEET

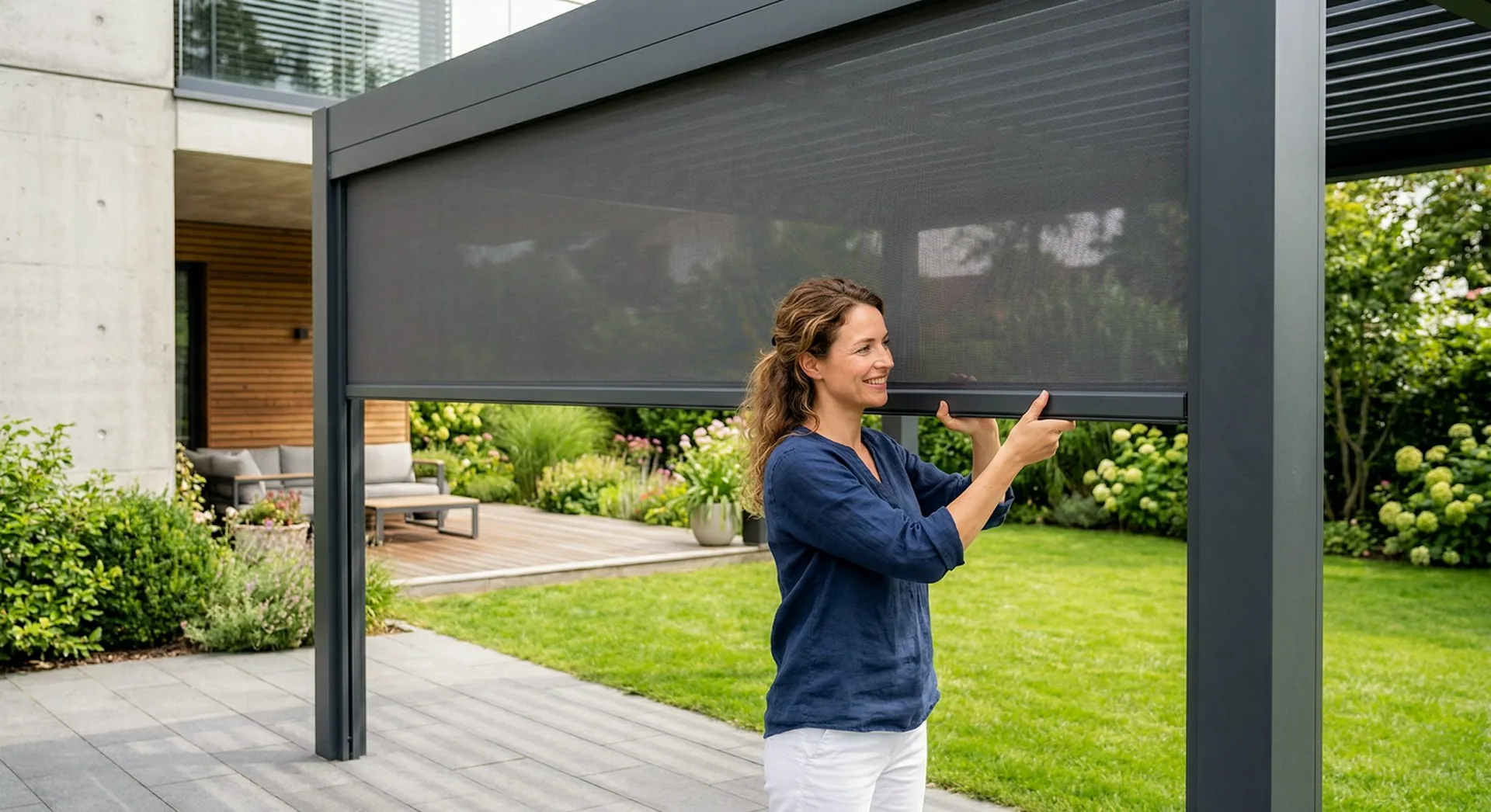

Luxa Tela 100M Zip Screen with Manual Control
PRODUCT DATASHEET
Luxa Tela 100M Zip Screen with Manual Control
Manual zip screen with spring-tensioned mechanism.
Key features
- Spring-tensioned manual control
- No electricity required
- Zip-guided channels with integrated zipper
- Natural light with privacy
- Sun, wind and weather protection
- Between-pillar installation (side flag design)
- Project wind review route
- Precision fabric tension PVC profile
- Plastex durable accessories
- Max area 12.5 m²
Technical specifications
| Operation | Spring-tensioned manual (no electricity) |
| Guide System | Zip-guided with integrated zipper |
| Fabric | Balanced — natural light in, blocks outside visibility |
| Dimensions (X) | 900 – 5,000 mm |
| Dimensions (Y) | 1,000 – 2,500 mm |
| Max Area | 12.5 m² |
| Max Expansion | 2,500 mm |
| Note | Heights above 2.7m: fabric has additional markings |
| Installation | Between-pillar side flag design |
| Accessories | Plastex high-quality components |
| Tension System | PVC profile with covered bottom plastic |
Standards & certifications
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-3 · Snow loads
- EN 1991-1-4 · Wind actions
- EN 1090-3 · Execution of aluminium structures
- EN 12020-2 · Aluminium extrusion tolerances
- Qualicoat Class 2 · TIGER Coatings powder coat
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
