PRODUCT DATASHEET

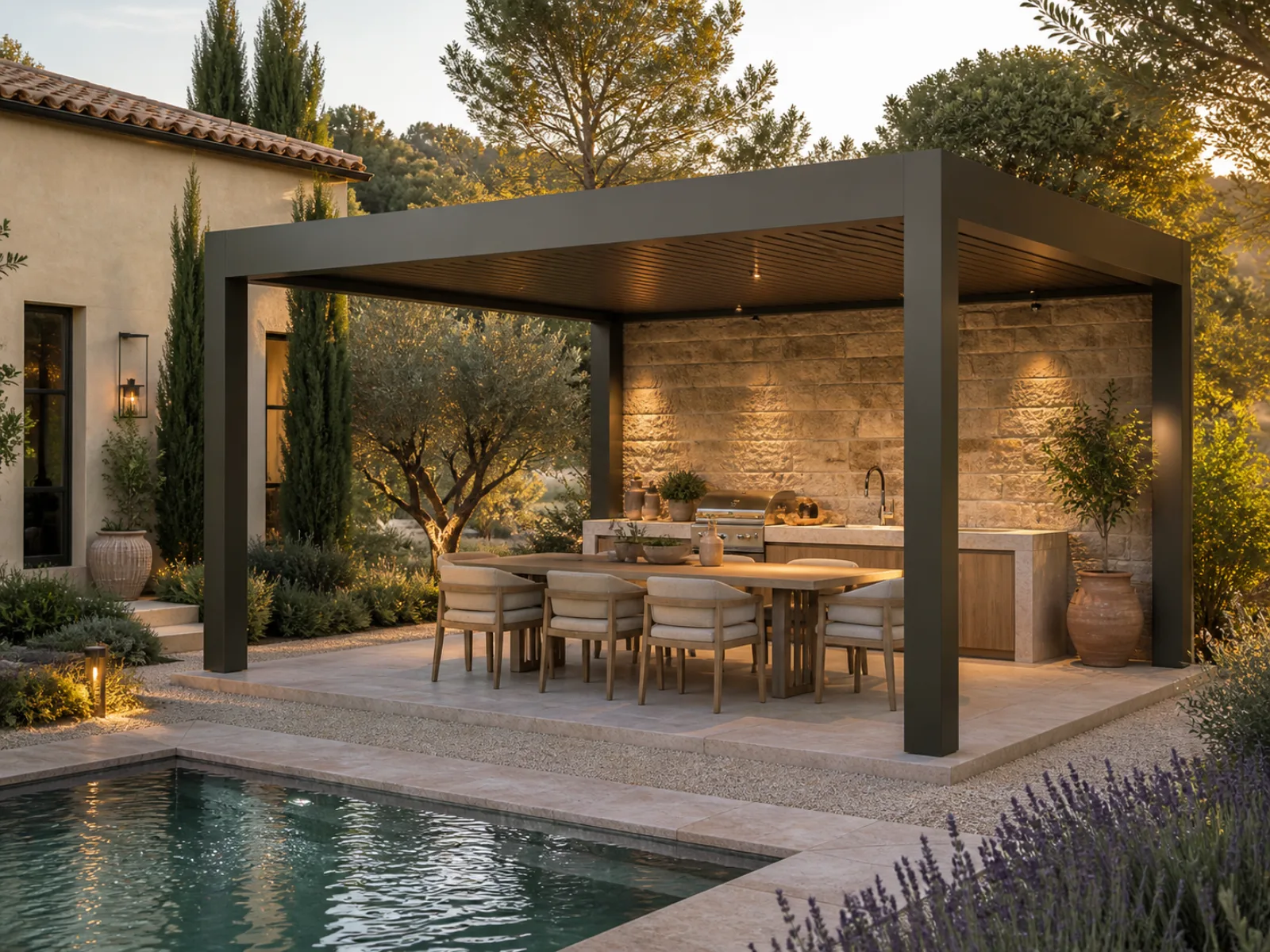

Luxa Sereno 500 Bioclimatic Pergola
PRODUCT DATASHEET
Luxa Sereno 500 Bioclimatic Pergola
The motorised entry into the Sereno family.
Key features
- Motorised louvre control (24V quiet drive)
- Remote handset + wall switch
- Adjustable louvres up to 115°
- Optional rain + wind sensor automation
- QUALICOAT Class 2 powder coat
- Any RAL colour
- 98% recyclable aluminium
- Reinforced connection system
- Concealed water drainage
- Same frame as Luxa 700
- EN 1991 wind/snow review route
Technical specifications
| Material | Aluminium 6063-T5 |
| Louvre Rotation | Up to 115° |
| Max Expansion | 4.0 m |
| Available Sizes | 3×3, 3×4, 3×5, 4×4, 4×5, 4×6 m |
| Surface Finish | QUALICOAT Class 2 powder coat, any RAL colour |
| Control | Motorised — remote handset + wall switch (24V) |
| Sensor Automation | Optional rain + wind sensors |
| Water Drainage | Concealed, easy-remove system |
| Recyclability | 98% recyclable aluminium |
| Standards route | EN 1991-1-3 snow · EN 1991-1-4 wind · QUALICOAT Class 2 documentation |
Standards & certifications
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-3 · Snow loads
- EN 1991-1-4 · Wind actions
- EN 1090-3 · Execution of aluminium structures
- EN 12020-2 · Aluminium extrusion tolerances
- Qualicoat Class 2 · QUALICOAT Class 2 powder coat
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on QUALICOAT powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
