TECHNICAL DATASHEET

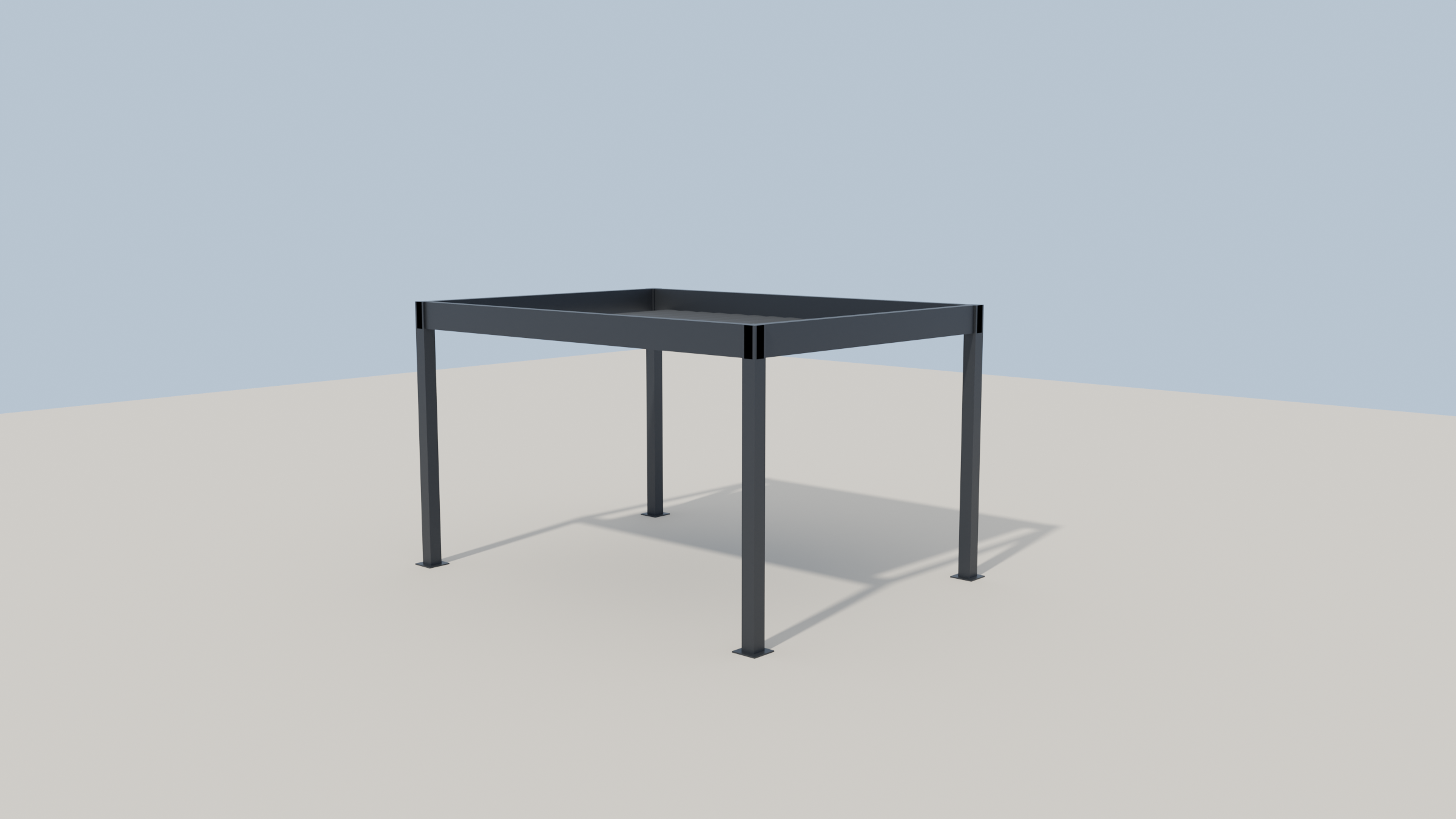

Luxa Sereno 700
TECHNICAL DATASHEET
Luxa Sereno 700
Bioclimatic Pergola
Motorised bioclimatic louvre roof. Documented for European project requirements for long service life with project-specific checks.
KEY FEATURES
BIOCLIMATIC LOUVRES
Motorised, rotate up to 115° for sun, shade & ventilation
RAINPROOF
Closed-position waterproof + concealed gutter drainage
POWDER-COATED ALUMINIUM
QUALICOAT Class 2 powder coat, RAL 7016 default · any RAL on request
SMART HOME
RF gateway · voice control · KNX
STRUCTURAL
EN 1991-1-3 snow · EN 1991-1-4 wind route, checked by project
TECHNICAL DATASHEET
Luxa Sereno 700
01 · SYSTEM LAYOUT

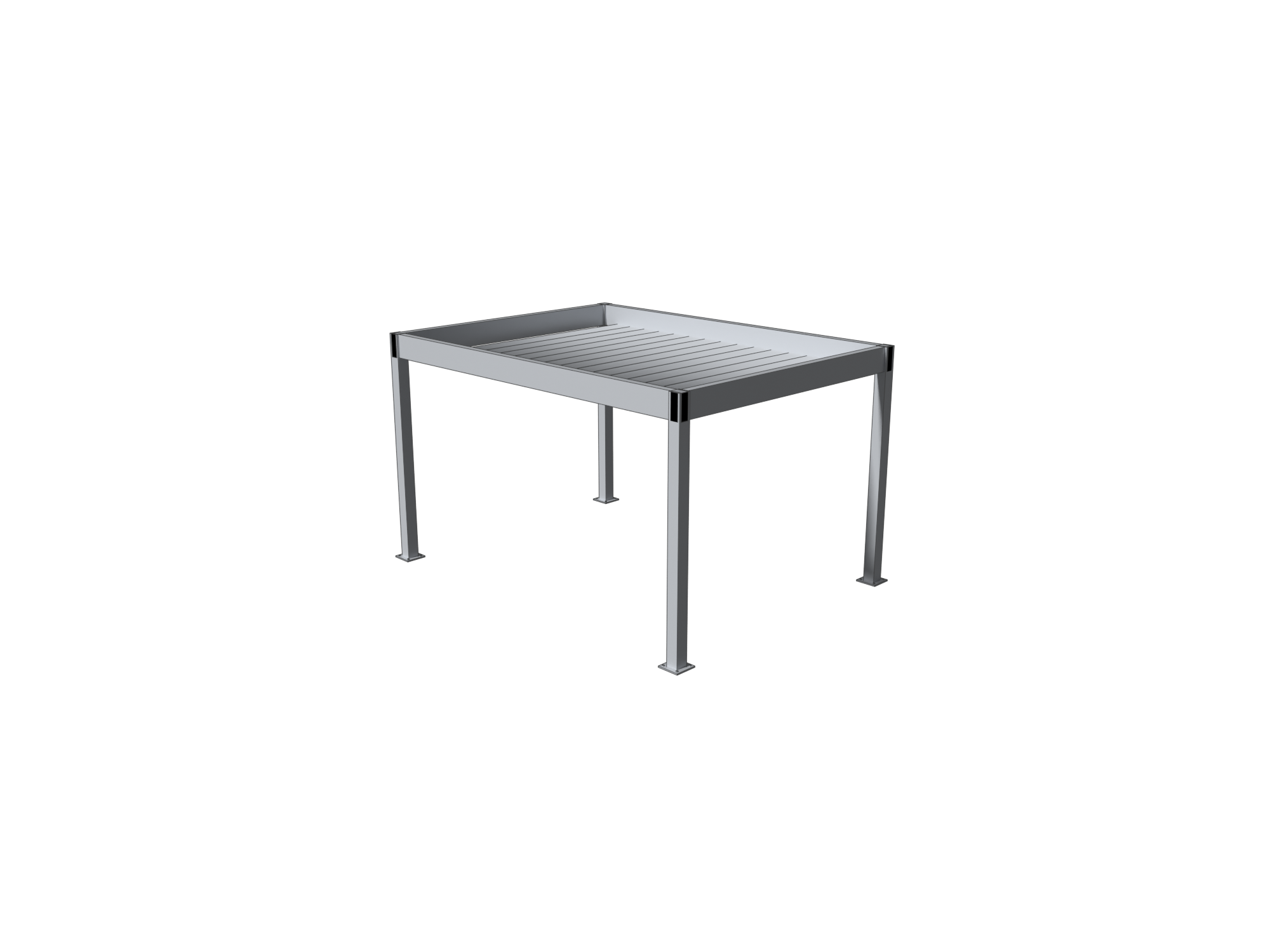

System layout
Standard 4-leg single module — A1..A4 columns, B1/B2 long carrier beams, C1/C2 short beams. Six standard sizes; coupling supported.
FIG. 01 · STANDARD MODULE
PONARC parametric model · Freestyle line-art
02 · STANDARD MODULE SIZES
Standard module sizes
| SIZE (W × P) | AREA | CONFIGURATION |
|---|---|---|
| 3 × 3 m | 9 m² | Single — 4 columns |
| 3 × 4 m | 12 m² | Single — 4 columns |
| 3 × 5 m | 15 m² | Single — 4 columns |
| 4 × 4 m | 16 m² | Single — 4 columns |
| 4 × 5 m | 20 m² | Single — 4 columns |
| 4 × 6 m | 24 m² | Single — 4 columns |
Maximum single-span 4.0 m. Larger areas: side-by-side or L-coupled with shared intermediate columns.
TECHNICAL DATASHEET
Luxa Sereno 700
03 · TECHNICAL SPECIFICATIONS
Technical specifications
| Material | EN AW-6063-T5 aluminium · 98% recyclable |
| Surface finish | QUALICOAT Class 2 powder coat · any RAL colour |
| Default colour | RAL 7016 anthracite grey |
| Louvre rotation | Up to 115° |
| Maximum single-span | 4.0 m |
| Snow load | Checked by project (EN 1991-1-3 route) |
| Wind load | Tested per EN 1991-1-4 |
| Drainage | Concealed in carrier beams + columns |
| Motor | RF tubular motor (50 Nm) |
| Smart home | Gateway · voice control · KNX |
| IP rating (motor + electronics) | IP44 |
| Service life | Long service life with routine care and project exposure review |
04 · STANDARDS & CERTIFICATIONS
Standards & certifications
- ·EN 1991-1-1 · Densities, self-weight, imposed loads
- ·EN 1991-1-3 · Snow loads
- ·EN 1991-1-4 · Wind actions
- ·EN 1090-3 · Execution of aluminium structures
- ·EN 12020-2 · Aluminium extrusion tolerances
- ·EN 13501-1 · Fire classification (EPDM seals)
- ·EN AW-6063-T5 · Aluminium alloy / temper
- ·ISO 9001 · Manufacturer quality management
05 · WARRANTY SUMMARY
Warranty summary
Warranty terms for aluminium frame, QUALICOAT powder coat and motorised drive are confirmed by project scope. Conditions: install within 12 months of delivery, follow installation manual, validate wind/snow assumptions by project.
06 · ORDER & SUPPORT
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
