PRODUCT DATASHEET
VisioMod Modulo — Posts, Caps & Accessories
PRODUCT DATASHEET
VisioMod Modulo — Posts, Caps & Accessories
The parts that hold it all up.
Key features

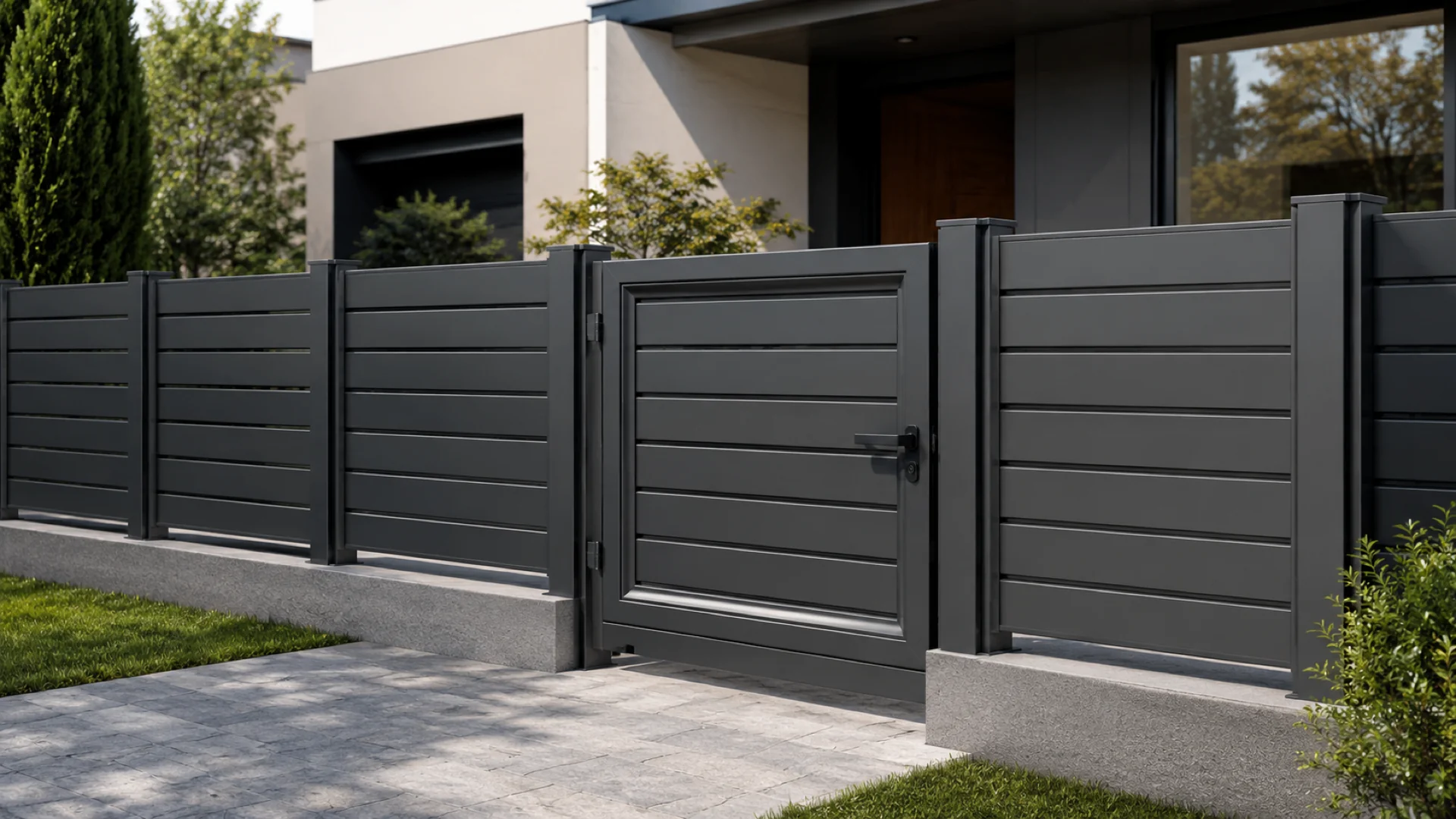

- Posts: 60×60 / 80×80 / 100×100 mm — bolt-down or concrete-set
- Caps: flat / pyramid / LED-integrated / rain-channelled
- Brackets: 90° / 135° / variable angle
- Mount kits: M12 anchor, deck mount, wall bracket
- Modulo Light: cap LED, between-slat strip, backlight panel — IP68
Technical specifications
| Post profile | 60 / 80 / 100 mm square aluminium |
| Post heights | 1100 / 1400 / 1800 / 2200 mm |
| Concrete anchor | M12 + galvanised base plate |
| Corner angle | 90° / 135° / 0–180° adjustable |
| Modulo Light IP | IP68 |
| Modulo Light driver | 24 V DC, 60–200 W |
| Modulo Light control | RF remote + wall dimmer + Zigbee/Matter bridge |
| Modulo Light warranty | 5 years |
Standards & certifications
- DIN 18065 · Stairs and railings (residential)
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-4 · Wind actions
- TRAV · Impact-resistant glazing (where applicable)
- EN 1090-3 · Execution of aluminium structures
- EN 12150 · Tempered safety glass
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
