PRODUCT DATASHEET

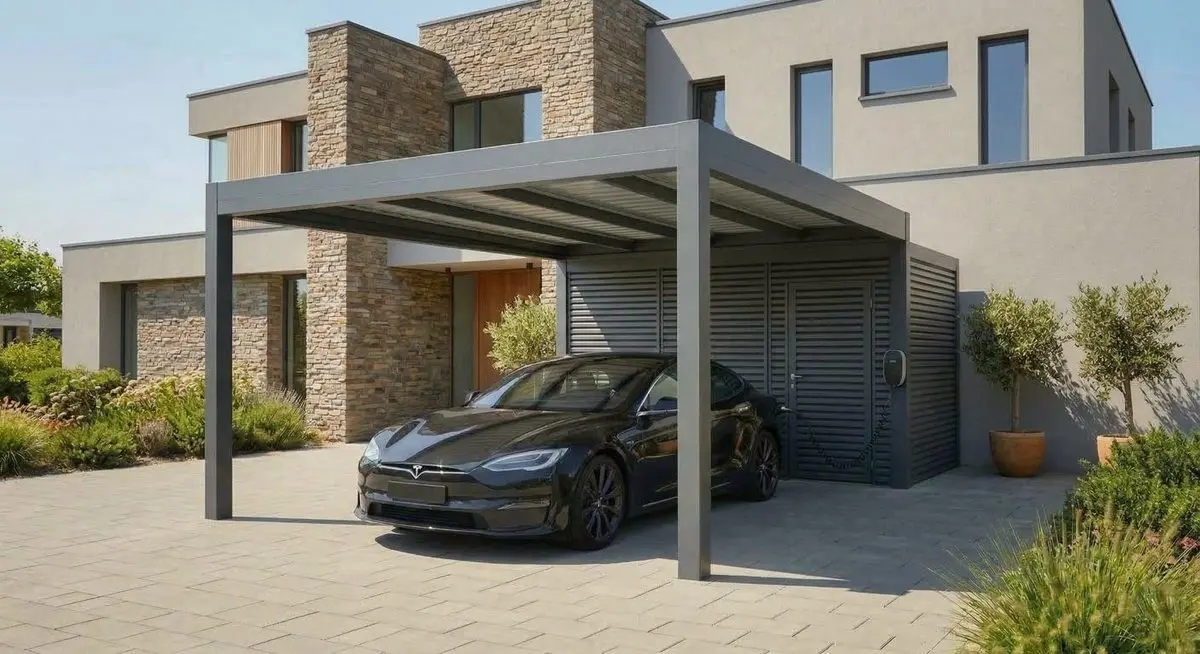

Luxa Riparo Box Carport
PRODUCT DATASHEET
Luxa Riparo Box Carport
Aluminium carport with integrated lockable storage unit for bikes, tools or garden equipment.
Key features
- Integrated storage
- Lockable doors
- 40mm PUR insulated walls
- 2200mm internal height
- Customisable sizes
Technical specifications
| Structure | Same as Aluminium Carport (6063-T5) |
| Storage Sizes | 1500×2500 mm or 2000×3000 mm |
| Wall Panel | 40 mm PUR insulated sandwich |
| Internal Height | 2200 mm |
| Door | Lockable single or double leaf |
| Floor | Concrete slab (by builder) |
| Snow review | Project snow route per EN 1991-1-3 |
| Surface Finish | Any RAL colour (TIGER Coatings) |
Standards & certifications
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-3 · Snow loads
- EN 1991-1-4 · Wind actions
- EN 1090-3 · Execution of aluminium structures
- EN 12020-2 · Aluminium extrusion tolerances
- Qualicoat Class 2 · TIGER Coatings powder coat
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
Order & support
PONARC Group · Sales: info@luxashade.com · Specifiers / architects: support@ponarc.com · Available across DE / AT / CH / NL / BE / FR / IT / RO / RU / SE / DK.
