PRODUCT DATASHEET

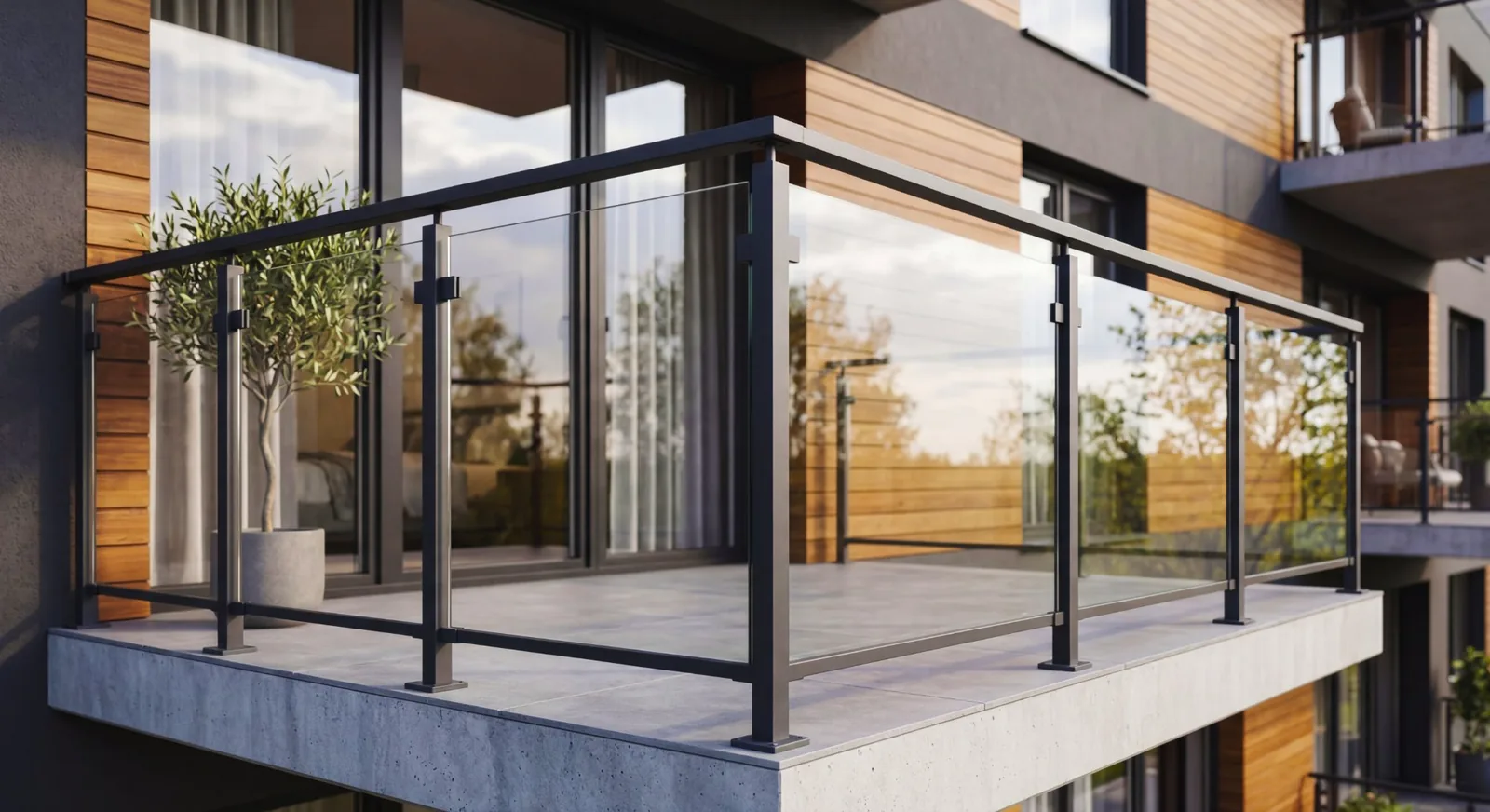

Visio Air Post Glass Balustrade
PRODUCT DATASHEET
Visio Air Post Glass Balustrade
Post-mounted glass balustrade with powder-coated aluminium posts.
Key features
- Powder-coated aluminium posts
- Square 40×40mm or round Ø42mm
- Adjustable glass clamps ±5mm
- No glass drilling required
- 2×8mm laminated glass
- Aluminium handrail profile
- Indoor and outdoor project route
- Residential line-load route
- Any RAL powder coat finish
- Any RAL colour posts
Technical specifications
| Posts | 40×40mm square or Ø42mm round (aluminium T6 6063) |
| Post Spacing | 1000–1200 mm centres |
| Glass | 2×8mm ESG + PVB laminated (17.52mm) |
| Glass Heights | 1000 / 1100 mm |
| Clamp Adjustment | ±5mm horizontal, ±3mm vertical |
| Line-load route | Residential route reviewed to EN 1991-1-1 |
| Handrail | Ø42mm or 60×25mm flat (aluminium, powder coated) |
| Post Finishes | Any RAL powder coat, anodised silver or bronze |
Standards & certifications
- DIN 18065 · Stairs and railings (residential)
- EN 1991-1-1 · Densities, self-weight, imposed loads
- EN 1991-1-4 · Wind actions
- TRAV · Impact-resistant glazing (where applicable)
- EN 1090-3 · Execution of aluminium structures
- EN 12150 · Tempered safety glass
- EN AW-6063-T5 · Aluminium alloy / temper
- ISO 9001 · Manufacturer quality management
Warranty
10 years on aluminium frame · 5 years on TIGER powder coat · 5 years on motorised drive (where fitted). Conditions: install within 12 months of delivery, follow installation manual, observe rated wind/snow loads.
