FRAME · STEP D2 · 02 OF 10
02

Pre-assemble the corner brackets and helicoils

Pre-assemble corner hardware before lifting heavy columns.

Pre-assemble the corner brackets and helicoils — illustration

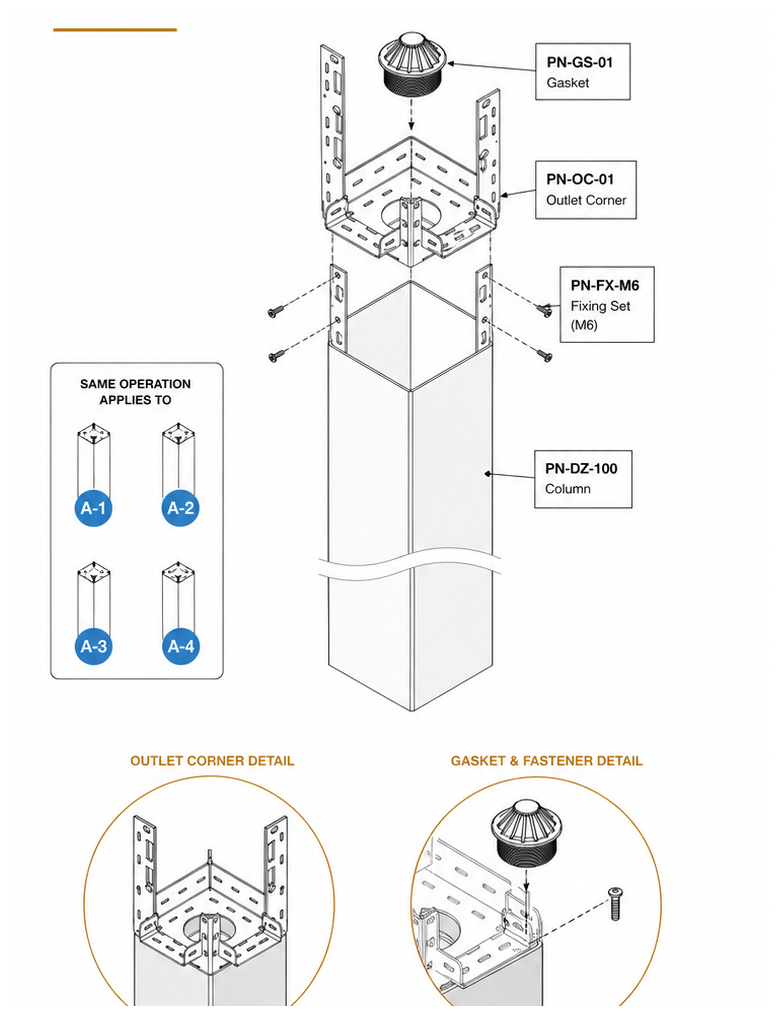

Fig. 02 — Pre-assemble the corner brackets and helicoils

SUB-STEPS

  1. 1Pre-assemble each column before placing it on the feet.
  2. 2Position the outlet corner on the column top.
  3. 3Place gasket on the outlet corner.
  4. 4Align fixing holes with the column.
  5. 5Insert M6 screws and tighten securely.
  6. 6Repeat for A-1 to A-4.

SPECIFICATIONS

  • Column profile: PN-DZ-100
  • Outlet corner: PN-OC-01
  • Gasket: PN-GS-01
  • Applicable to: 4 columns

TIP

Prepare all columns before frame assembly to improve efficiency.

WATCH OUT

Incorrect outlet orientation may lead to drainage issues.

TOOLS

Hex keys, screwdriver, soft mallet

TIME

17 min

About step 2 of the Luxa Riparo Pura Carport installation

Pre-assemble the corner brackets and helicoils · FRAME · 10 step · Luxa Riparo Pura Carport (free-standing aluminium carport)

Pre-assemble corner hardware before lifting heavy columns.
