FRAME · STEP D5 · 05 OF 8
05

Mount the left short beam

Left short beam ties the long beams — frame becomes self-supporting.

Mount the left short beam — illustration

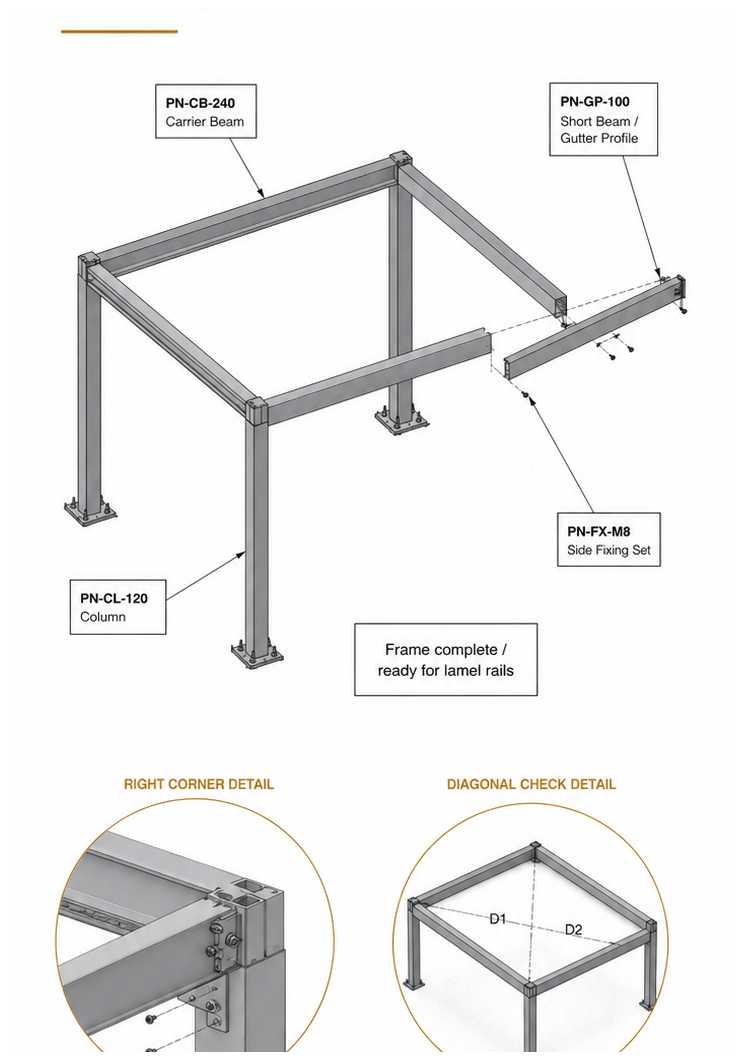

Fig. 05 — Mount the left short beam

SUB-STEPS

  1. 1Position the left short beam between front and rear beams.
  2. 2Align corner interfaces on both ends.
  3. 3Insert side fixing set and tighten lightly.
  4. 4Check the side is flush along the full depth.
  5. 5Verify the frame remains square.
  6. 6Tighten after confirming alignment.

SPECIFICATIONS

  • Short beam / gutter profile: PN-GP-100
  • Side fasteners: M8 fixing set
  • Flushness tolerance: ±2 mm
  • Frame geometry: square footprint
  • Install team: 2 installers

TIP

Clamp the profile temporarily before installing the second fixing point.

WATCH OUT

If the profile is not fully seated, the opposite side may not align.

TOOLS

Clamp, hex keys, square, torque wrench

TIME

12 min

About step 5 of the Luxa Sereno 700 installation

Mount the left short beam · FRAME · 8 step · Luxa Sereno 700 (bioclimatic pergola)

Left short beam ties the long beams — frame becomes self-supporting.
