PONARC × LUXASHADE
LAMELS · STEP D7 · 07 OF 8
07

Insert the first lamel row

First row of lamels enters the rail — verify free rotation by hand.

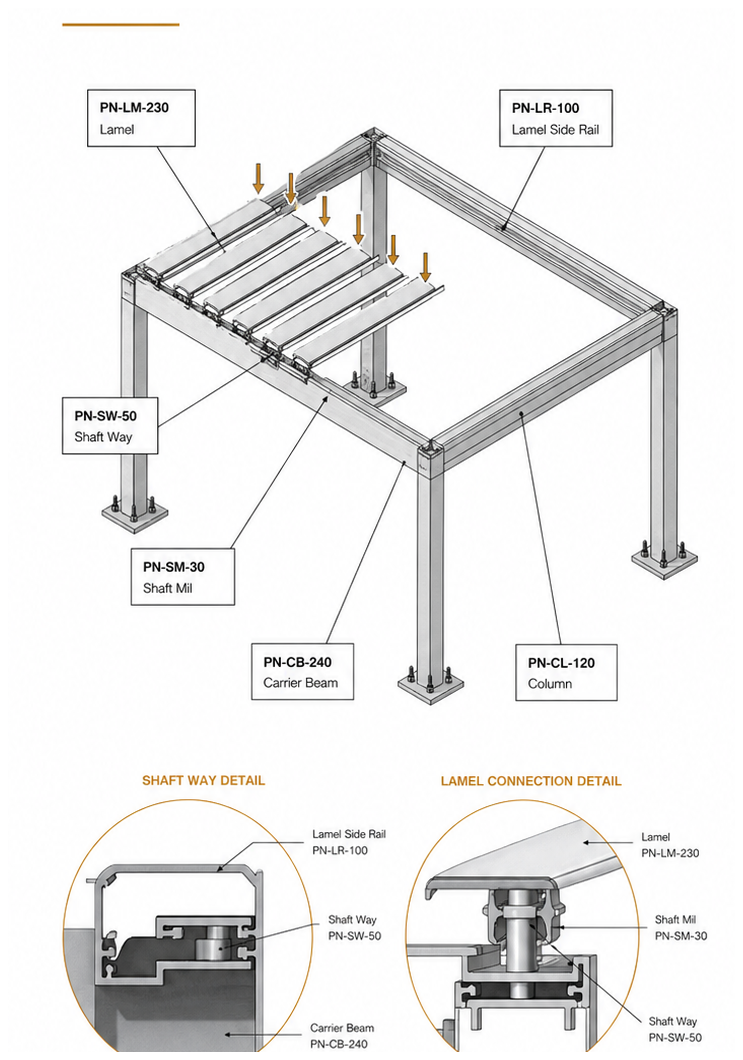

Insert the first lamel row — illustration
Fig. 07 — Insert the first lamel row

SUB-STEPS

  1. 1Insert the first lamel into the side rail guides.
  2. 2Align both pivot ends with the shaft-way connection points.
  3. 3Fasten the shaft-mil linkage and verify free rotation.
  4. 4Check spacing and parallel alignment before tightening.
  5. 5Repeat for the first row.

SPECIFICATIONS

  • Lamel profile: PN-LM-230
  • Rotation range: up to 115°
  • Recommended team: 2 installers
  • Estimated time: 30-45 min
  • Alignment tolerance: ±2 mm

TIP

Start from the reference edge and keep each lamel parallel to the previous one.

WATCH OUT

Do not force a lamel into the guide rail.

TOOLS

Hex keys, torque wrench, soft mallet, step ladder

TIME

37 min

About step 7 of the Luxa Sereno 700 installation

Insert the first lamel row · LAMELS · 8 step · Luxa Sereno 700 (bioclimatic pergola)

First row of lamels enters the rail — verify free rotation by hand.
