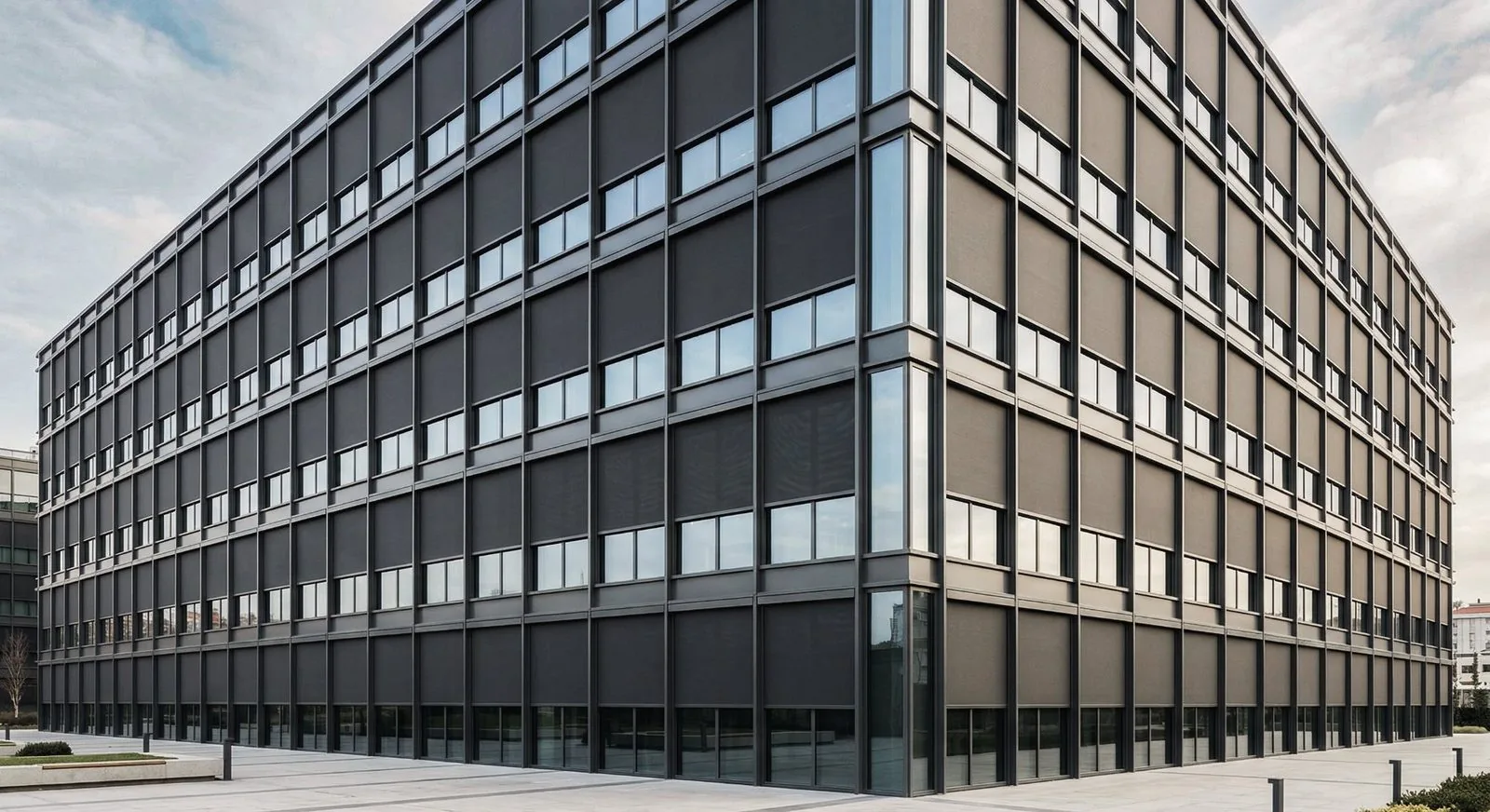

Energy Performance of External Shading: How to Reduce Cooling Loads a project-specific amount.

External shading systems are one of the most effective passive energy strategies available to architects and building managers. This guide explains the physics, standards, and financial returns.

How External Shading Reduces Cooling Loads

The Solar Radiation Path: Direct sunlight passes through window glass, warming interior surfaces. A typical south-facing facade in northern Europe receives 500–700 W/m² of solar radiation on summer days.

Without shading: This energy is absorbed by interior surfaces (walls, furniture, people), raising indoor air temperature. Air conditioning must counteract this gain.

With external shading: The solar radiation is intercepted BEFORE reaching the glass, reducing the cooling load by 60–85% depending on shading type.

Why external? External shading is more effective than internal (blinds inside) because it blocks heat before it enters the building, whereas internal shading absorbs heat between glass and room.

Key Performance Metrics

Fc Value (Solar Factor): - Range: 0.0 (complete blockage) to 1.0 (no blockage) - Fc 0.20–0.30: Optimal for southern facades in warm climates - Fc 0.30–0.50: Balanced for daylighting + solar control - Fc 0.50+: Minimal control, primarily for privacy

U-Value (Thermal Transmittance): - Shading system alone doesn't improve U-value - But combined with low-E glass (U 0.8–1.2 W/m²K), total facade performance improves - External shading reduces solar load; low-E glass prevents heat loss in winter

g-Value (Shading Coefficient): - Legacy metric, largely replaced by Fc - Still used in some building codes (France, Austria) - Approximately: g = 0.87 × Fc (for unshaded window)

Shading Type Comparison

Bioclimatic Pergolas ([Luxa Sereno 700](/en/products/pergolas/luxa-700)): - Fc: 0.15–0.25 (closed position) - Cooling load reduction: 35–40% - Lifespan: 25–30 years - Cost: €15,000–€30,000 (4×4m) - Annual energy savings: €800–€1,200 (4m² south-facing)

Zip Screens ([Luxa Tela 100](/en/products/zip-screens/luxa-100)): - Fc: 0.25–0.40 (sheer mesh) - Cooling load reduction: 25–30% - Lifespan: 12–15 years - Cost: €3,000–€8,000 (window-sized) - Annual energy savings: €150–€300 (per window)

Brise Soleil (Fixed or Sliding): - Fc: 0.10–0.50 (depending on density) - Cooling load reduction: 30–50% - Lifespan: 20–25 years - Cost: €400–€2,000 per m² (facade area) - Annual energy savings: Varies by building size

Fabric Awnings: - Fc: 0.35–0.55 - Cooling load reduction: 15–25% - Lifespan: 10–12 years - Cost: €200–€600 per m² - Annual energy savings: €50–€100 (per m²)

green building certification & Certification Credits

LEED v4.1 — EAc2 (Optimized Energy Performance): Buildings using external shading to achieve 15% energy savings above baseline earn 5 points. 25% reduction = 10 points. Bioclimatic pergolas and fixed brise soleil typically enable 15–25% reductions.

BREEAM (UK Standard): - Ene1 (Reduction of CO2 emissions): 15 points for shading systems achieving Fc ≤0.30 - Ene2 (Sub-metering of significant energy uses): 4 points for monitoring thermal performance

Certification Paths: - Gold: 15% energy reduction (shading contributes 5–8%) - Platinum: 25%+ energy reduction (shading contributes 8–12%)

Financial ROI Calculation

Example: 100 m² South-Facing Office Building Facade

Scenario 1: Bioclimatic Pergola (Luxa Sereno 700) - Installation cost: €25,000 (€250/m²) - Annual cooling energy: 150,000 kWh (baseline) - With shading: 105,000 kWh (30% reduction) - Annual savings: 45,000 kWh × €0.15/kWh = €6,750 - Payback period: 3.7 years - 20-year NPV (at 3% discount): €89,000

Scenario 2: Zip Screens + Low-E Glass - Zip screens: €8,000 (€80/m²) - Low-E glass replacement: €12,000 - Total: €20,000 - Annual cooling reduction: 25% (45,000 kWh) - Annual savings: €6,750 - Payback: 2.96 years - 20-year NPV: €95,000

Scenario 3: Fixed Brise Soleil - Material & installation: €30,000 (€300/m²) - Annual cooling reduction: 35% (52,500 kWh) - Annual savings: €7,875 - Payback: 3.8 years - 20-year NPV: €102,000

Design Integration

Orientation-Based Strategy: - South-facing: Fixed louvres at 40–50° angle (blocks summer sun, admits winter sun) - East/West: Vertical fins + horizontal louvres (challenges: low morning/evening angles) - North-facing: Usually unnecessary except for reflection control

Daylighting Balance: External shading reduces glare but can reduce useful daylight by 15–25%. Design solution: - Use semi-transparent shading (Fc 0.30–0.40) instead of full blockage - Combine with high windows to bring light deep into space - Use light shelves or reflective surfaces to redirect light

Aesthetics: - Fixed systems: Architectural statement, clean geometry - Motorised: Modern, responsive to occupant needs - Material choice: Aluminium (low routine care), wood (aesthetic), stainless steel (coastal durability)

Conclusion

External shading is one of the most cost-effective energy upgrades available. A well-designed system combining bioclimatic pergola or brise soleil with low-E glass can reduce cooling loads by 30–40%, earning green building certification credits, and paying for itself in 3–5 years. Over a 20-year building lifecycle, energy savings exceed €80,000–€100,000 for a typical 100 m² facade.
