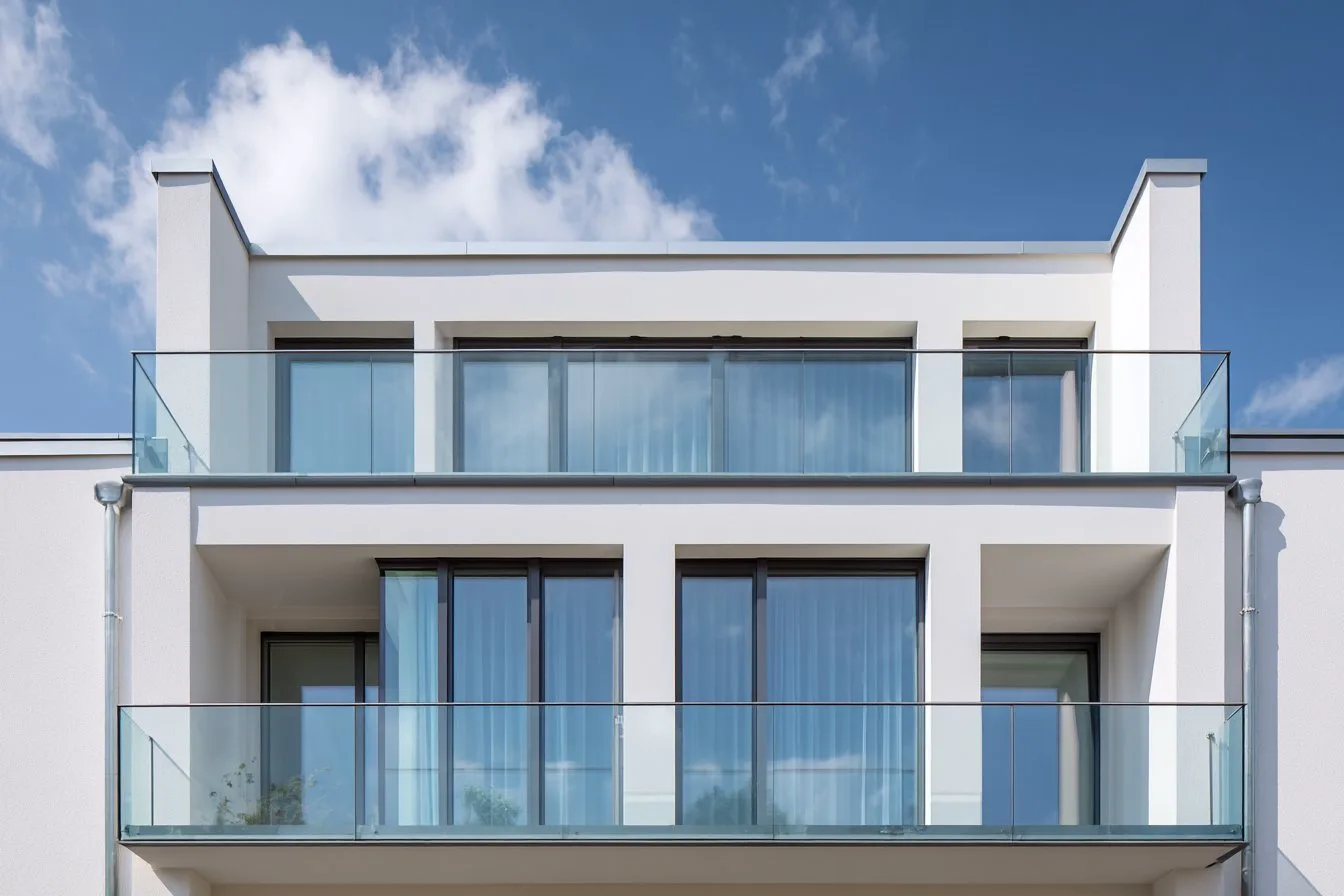

Glass Railing Wind Load Guide: EN 1991-1-4 and Project Ratings.

Every frameless glass railing should be checked against horizontal actions — and wind is one of the most variable. Unlike static loads from people leaning against a barrier, wind pressure fluctuates with gusts, changes direction, and amplifies at height. Getting the engineering basis right helps the project team select the correct glass build, base channel and fixing strategy before fabrication.

This guide explains how wind loads are calculated for glass railings, what the European standards require, and how to choose the right system for your project.

How Wind Creates Load on Glass Railings

Wind does not simply push against glass. It creates a complex pressure field: positive pressure on the windward face, negative pressure (suction) on the leeward side, and turbulent vortices at edges and corners. For a glass balustrade, the critical load case is usually the direct windward pressure combined with the lack of back support — the glass panel acts as a cantilevered vertical plate.

The design wind pressure depends on three factors: basic wind velocity (site location), exposure factor (terrain and height above ground), and aerodynamic shape factor (panel geometry and building form). In many European projects, this can move the specification from a standard residential railing toward a reinforced commercial or exposed-site system.

EN 1991-1-4: The Eurocode for Wind Actions

EN 1991-1-4 defines how to calculate wind loads on structures across Europe. For glass railings, the key parameters are:

Basic wind velocity (vb): Determined by the site's wind map zone. Germany ranges from 22.5 m/s (Zone 1, inland) to 30 m/s (Zone 4, North Sea coast). The UK ranges from 21 to 30 m/s depending on region.

Terrain category: From Category 0 (open sea) to Category IV (urban centres). Higher categories mean more turbulence but lower mean wind speed at ground level. For high-rise balconies, the terrain roughness has less effect because the building itself is above the surrounding obstacles.

Reference height (ze): The height of the railing above ground. Higher balconies and roof terraces usually need a more conservative load check than low-rise sheltered locations.

Pressure coefficients (cp): For glass balustrades on building edges, corners, and rooftop parapets, pressure coefficients can exceed 1.5 — meaning the local wind pressure is 50% higher than the reference pressure. Corner balconies are particularly exposed.

How Load Rating Translates to Real Conditions

Glass railing systems are usually selected by their documented horizontal load capacity and the intended use category. The exact rating should be confirmed against the project location, national annex, building use and substrate.

Residential specification Usually covers houses, villas and low-rise residential balconies where exposure and crowd loading are limited.

Commercial specification Often used for hotels, offices, shopping centres and mid-rise residential projects where public use, higher occupancy or greater wind exposure must be considered.

Heavy-duty specification Used where crowd loading, exposed roof positions, coastal wind or transport/public-building requirements are part of the design brief.

Why Base Channel Depth Matters

The aluminium base channel is not just a mounting detail — it is the structural backbone of a frameless glass railing. The channel must transfer the full horizontal load from the glass panel into the substrate (concrete, steel, or timber) without excessive deflection.

A deeper channel profile provides a longer lever arm, which dramatically reduces the stress concentration at the glass-to-aluminium interface. This is why the FS 1500 uses a slim profile for residential loads, the FS 3000 uses a reinforced profile for commercial loads, and the FS 7000 uses the deepest profile in the range for heavy-duty applications.

The wedge-lock fixing system inside the channel is designed to distribute clamping force along the glass edge and reduce local stress concentrations. This detail should be reviewed together with the glass build, anchor pattern and substrate condition.

Glass Thickness for Wind Resistance

The glass thickness options for each system are matched to the wind pressure rating. Thicker laminated glass resists higher pressures with less deflection. All FS systems use VSG (laminated safety glass) where two tempered panels are bonded with PVB interlayer — if one ply breaks, the barrier continues to function.

| System | Glass | Specification Path | Typical Use | |--------|-------|-------------------|-------------| | FS 1500 | 6+6, 8+8 or 10+10 mm VSG | Residential project check | Residential, sheltered | | FS 3000 | 8+8, 10+10 or 12+12 mm VSG | Commercial project check | Commercial, mid-rise | | FS 7000 | 10+10, 12+12 or 15+15 mm VSG | Heavy-duty project check | Heavy commercial, high-rise |

All three systems use VSG (Verbund-Sicherheitsglas / laminated safety glass) with PVB interlayer. The final glass build and post-breakage behaviour should be checked against the applicable project standard and local approval route.

Installation Factors That Affect Wind Performance

Anchor spacing: Closer anchor bolts reduce the bending moment at each anchor point. For wind-exposed installations, anchor spacing should be defined by the project calculation and the tested fixing detail.

Substrate quality: Concrete grade, steel edge condition, timber backing and waterproofing layers all affect pull-out resistance. The railing system should be matched to a verified substrate rather than selected from glass appearance alone.

Edge distance: Glass panels need appropriate clearance from building edges. In wind-exposed corner positions, the panel fixings may need to resist combined pressure and suction, which can require asymmetric anchor patterns.

Drainage: Water trapped in the base channel creates additional dead load and accelerates corrosion of anchor components. All FS systems include integrated drainage slots to prevent water accumulation.

Specifying the Right System

For low-rise residential projects in sheltered locations, the FS 1500 provides the most economical solution with a slim aesthetic profile when the project calculation supports that selection.

For commercial buildings, hotels and mid-rise residential projects, the FS 3000 is usually the starting specification because wind exposure, occupancy and public use are more demanding.

For public buildings, stadiums, airports, coastal high-rises and any project where crowd loading is a design case, the FS 7000 is the heavy-duty option in the FS series.

All three systems share the same visual language — frameless glass in an aluminium base channel — so architects can specify different load ratings across a single project without changing the design aesthetic.

Conclusion

Wind load engineering for glass railings is a project-specific structural check that directly affects panel thickness, channel depth, anchor specification and system cost. Starting from the correct load path saves time during planning and reduces the risk of costly re-specification later.

The FS series from VisioMod gives specifiers three clear system families: FS 1500 for residential projects, FS 3000 for commercial projects, and FS 7000 for heavy-duty applications where the project calculation requires a reinforced railing package.
