Suitable projects
Retractable roofs suit premium homes, restaurants and rooftop terraces where daylight and experience are part of the brief.
- Open-sky premium terraces
- Restaurants and rooftops
- Projects comparing fixed vs retractable louvre roofs
LUXASHADERetractable Louvre Roof
Luxa 800 Retractable Louvre Roof System
Formerly known as Luxa 800 Retractable Louvre Roof System
LRS 800A retractable louvre roof that does what fixed-blade systems can't — slide the louvres aside and the sky comes back. Aluminium louvres rotate 135° and retract to one side, controlled by remote, RTS app, or voice. Engineered in Germany to EN 1991. Modules from 3×3 m to 4×6 m, any RAL colour.
Slide the louvres aside, and the sky comes back.
Some pergolas open and close. The Luxa Sereno 700 is one of those. The Aperio 800 does something else: when you want clear sky, it gives you clear sky. The aluminium louvres slide along precision rails and stack to one side — your covered terrace becomes a completely open outdoor space, ready for stargazing, an unfiltered sunrise breakfast, or a garden party where the air moves freely. When the storm arrives, the louvres slide back, rotate to seal, and the rain runs concealed inside the columns. A dual RTS drive moves both axes — angle (135°) and slide — independently, controlled by remote, smartphone app, or voice. Built from extruded 6063-T5 aluminium with TIGER Coatings powder coat in any RAL colour, motor sealed to IP44, documented through the EN 1991 project-check route. Integrated rain and wind sensors close the roof automatically when you're away.
MAX SPAN4.0m
MATERIAL98% recyclable aluminium
KEY FEATURES
- Fully retractable louvre blades
- Open-sky capability
- Motorised operation
- All-aluminium construction
- Four-season weather protection
- Natural light and ventilation control
- TIGER Coatings powder coat
- Any RAL colour
- 98% recyclable aluminium
- Finish selected for outdoor exposure
AVAILABLE SIZES3×3 · 3×4 · 3×5 · 4×4 · 4×5 · 4×6m
PRODUCT DECISION GUIDE
When Luxa 800 Retractable Louvre Roof System is the right retractable roof.
Use this route when the terrace needs full rain protection but also the option to retract the louvres and return open sky.
Check before quote
Define stack direction, motor routing, side enclosure needs and exposure assumptions before budget is locked.
- Blade stack and clearance
- Electrical and control route
- Side ZIP or glass enclosure plan
Project handoff
Position the retractable roof as an experience-led system, then confirm the engineering route before final quote.
- Compare against fixed pergola
- Run exposure assumptions
- Quote after stack and enclosure choices
Continue project review
Fixed louvre alternative
Compare against a motorised bioclimatic pergola before choosing retraction.
Side closurePlan vertical shading where wind, glare or privacy are part of the brief.
Project reviewShare site dimensions, exposure and target use before final product selection.
Product familiesCompare the wider PONARC outdoor-living and architectural system range.
PRODUCT ANSWERS
Practical answers about Luxa Aperio 800.
Use these answers when comparing a retractable louvre roof for terraces that need both weather closure and open-sky control.
What is Luxa Aperio 800 used for?
Luxa Aperio 800 is used for premium terraces, restaurants and outdoor rooms where the louvre roof should rotate for shade and retract when the project needs an open sky.
Compare retractable roofs →When is a retractable louvre roof better than a fixed pergola?
Choose the retractable route when the experience of full sky opening matters; choose a fixed bioclimatic pergola when rotating shade and weather control are enough.
Compare fixed pergola →What should be checked before quotation?
Confirm roof size, blade stack direction, drainage, wind and snow assumptions, electrical route, side enclosure plan and whether ZIP screens or glass systems will be added.
Review retractable roof →TECHNOLOGY & DETAILSEngineering That Performs.
Fully Retractable Louvres
Blades rotate for shade control, then slide and stack to reveal clear open sky. When closed, double-walled louvres form a sealed waterproof surface.
Reinforced Connection System
Reinforced frame with precision-guided slide rails. Quick-connect fittings reduce assembly time by 30% compared to conventional construction.
TIGER Coatings Powder Coat
Industrial powder coat by TIGER Coatings — UV-resistant, salt-spray tested, available in any RAL colour. Exceeds GSB and Qualicoat standards.
Dual Motor System
Independent motors for blade rotation and sliding. Control louvre angle and roof position separately via remote, app, or smart home platform.
Concealed Water Drainage
Integrated drainage channels rainwater through hollow columns when louvres are closed. Wider gutters handle heavy rainfall without overflow.
All-Aluminium Durability
6063-T5 extruded aluminium blades, rails, and columns. No fading, no corrosion, no wear. 98% recyclable at end of life.
TECHNICAL SPECIFICATIONSBuilt to Standard.
MaterialSolid aluminium alloy (blades, rails, posts)
Blade TypeFully retractable (slide and stack)
Surface FinishTIGER Coatings powder coat, any RAL colour
ControlMotorised retractable mechanism
Climate ControlNatural regulation of light, airflow, and temperature
Weather ProtectionFull closure for rain, wind, and adverse conditions
Durability routeFinish and exposure reviewed by project
Recyclability98% recyclable aluminium
PRODUCT FEATURES
Engineered for excellence.
COMPATIBLE ACCESSORIES
Complete your outdoor space.
LuxaShade
Luxa Tela 100 Zip Screen
Project wind review by fabric, size and exposure
LuxaShade
Luxa Tela 100S Solar Zip
No wiring — 40 cycles/charge
LuxaShade
Luxa Tela 100T Top Screen
Horizontal under-roof UV screen
VisioMod
FrontSlide Glass Wall
Frameless sliding glass room
VisioMod
FrontFold Bi-Fold Glass
Full-width opening bi-fold
LuxaShade
Fixed Brise Soleil
Permanent facade louvres
LuxaShade
Luxa Tela 100M Manual Zip
No electricity needed
LuxaShade
Folding Brise Soleil
Bi-fold shutter, compact stack
LuxaShade
Sliding Brise Soleil
Track-guided sliding panels
LuxaShade
Pleated Insect Screen
Accordion-fold, up to 6 m
APPLICATIONSWhere It Works.
The Luxa 800 excels where the full open-air experience matters. In residential settings, it transforms terraces into spaces that shift between a protected outdoor…
ACCESSORIES & ADD-ONSComplete Your Setup.
The Luxa 800 supports a full range of accessories. Integrated LED lighting includes warm-white and RGB colour-changing strips in roof and column profiles, dimmable…
FREQUENTLY ASKED QUESTIONSCommon Questions.
The Luxa Sereno 700 rotates fixed louvres for shade and ventilation control but they stay in place. The Luxa 800 louvres both rotate AND slide — they stack compactly at one end to reveal a completely open sky. When closed, both systems provide waterproof protection, but only the Luxa 800 offers the full open-air experience.
When fully retracted, the Luxa 800 louvres stack into a compact package occupying approximately 15–20% of the total roof area, depending on module dimensions. The remaining 80–85% is completely open sky.
Yes. The Luxa 800 uses a dual-motor system: one motor controls the louvre blade rotation (0–135°), and a second motor drives the sliding mechanism. Both can be operated independently via remote control, smartphone app, or smart home integration.
Yes. When the louvres are fully closed, the double-walled blades interlock to form a sealed waterproof surface. An integrated drainage system channels rainwater through concealed gutters into the hollow columns. The wider gutter profile handles heavy rainfall.
All components — double-walled louvre blades, precision slide rails, beams, and columns — are manufactured from extruded 6063-T5 aluminium alloy with TIGER Coatings powder coat. All fasteners are stainless steel. Aluminium is 98% recyclable.
Standard modules: 3×3, 3×4, 3×5, 4×4, 4×5, and 4×6 metres. Multiple modules can be coupled for larger terraces. The sliding direction is customisable — stack towards the house wall or towards the garden.
Yes. The Luxa 800 motors are compatible with RTS protocol, integrating with cloud hub, Amazon Alexa, Google Home, and Apple HomeKit. Optional rain and wind sensors trigger automatic roof closure.
Requirements vary by country. In Germany, retractable roofs under 30 m² are often permit-free. In France, structures under 20 m² typically require a déclaration préalable. A retractable roof may be treated differently from a fixed structure — consult your local authority. Your PONARC dealer provides structural documentation.
Clean blades, rails, and frame 2–3 times per year with water and mild soap. Keep the slide rails free of debris for smooth operation. Clear drainage channels before autumn. Lubricate the sliding mechanism annually. The powder coat requires no repainting.
The Luxa 800 is positioned above the Luxa Sereno 700 due to the dual-motor system and precision slide rails. The price varies by module size, colour, and accessories. Request a personalised quote — consultation and measurement are free.
The Luxa 800 is rated for snow loads checked by project snow zone and EN 1991 route in closed position. The system includes a temperature sensor that automatically opens louvres below 4°C to prevent snow accumulation damage.
INSTALLATIONFrom Plan to Pergola.

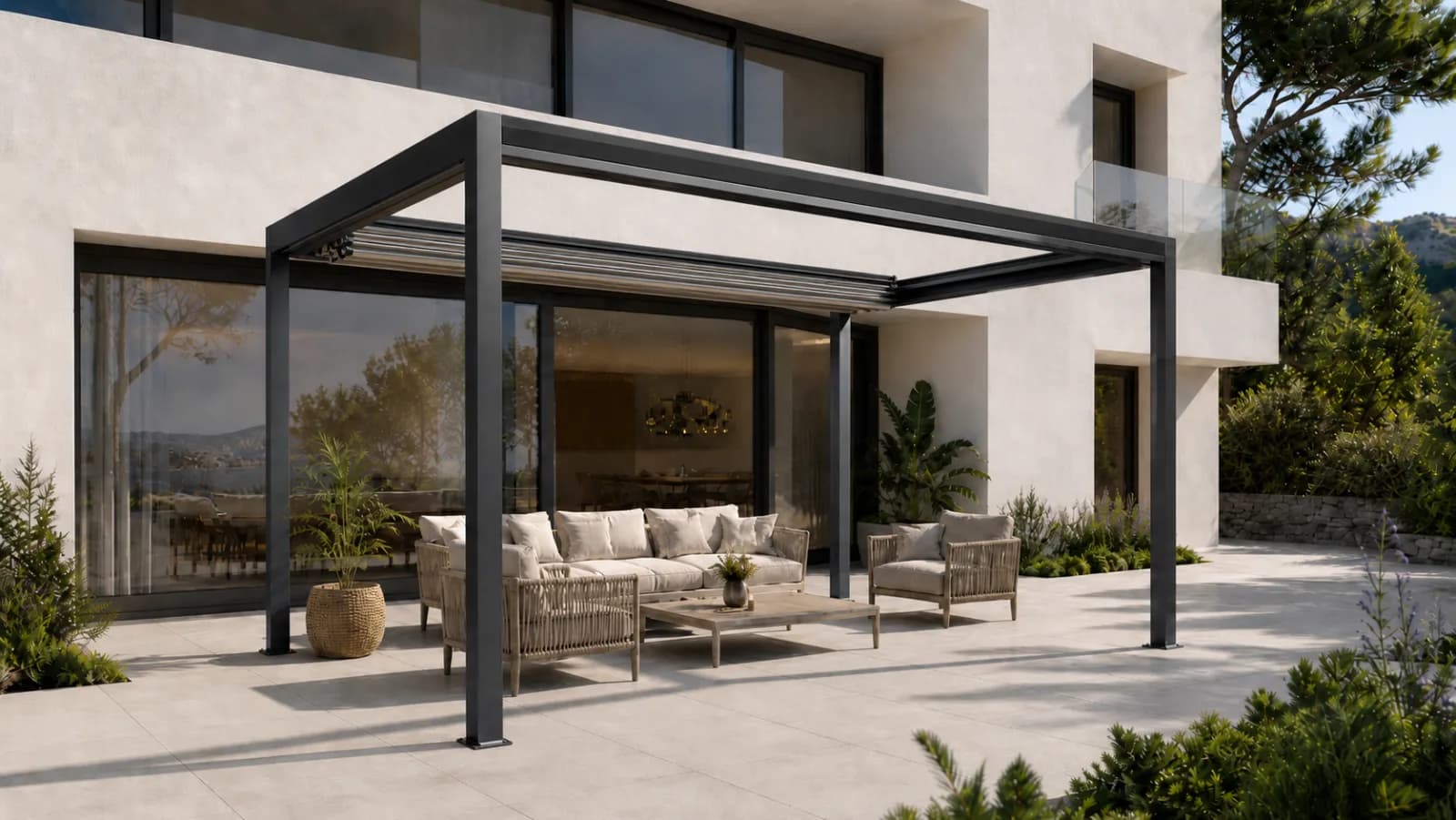

The Luxa 800 can be installed freestanding on four or more columns or wall-mounted. The sliding direction is customisable — louvres can stack towards the building…
COLOURS & FINISHESYour Colour, Your Style.
Every Luxa 800 receives TIGER Coatings industrial powder coat — exceeding GSB and Qualicoat standards. Choose any RAL colour. Popular choices: RAL 7016 (Anthracite…
CARE & MAINTENANCEBuilt to Stay Beautiful.
The Luxa 800 requires moderate maintenance due to the sliding mechanism. Clean the aluminium frame, louvre blades, and slide rails 2–3 times per year with lukewarm…
Plan your installation — free engineering tools
CARBON & COOLING SAVINGSCalculate annual CO₂ avoided by this retractable louvre roofPick a city, set your m², see kg CO₂/yr + cooling-demand reduction. JRC PVGIS-5 + EEA 2024.→WIND & SNOW LOAD CHECKCheck site qb / sk vs Eurocode 1 zonesEN 1991 national annex per country · 21 EU/EEA countries supported.→
